TopaScope

TopaScope

Excellent

Outstanding
features
With TopaScope®
,
we have substantially
expanded our
screening portfolio.

What are your benefits?
Compete with online stores and your competitors
by providing more added value.

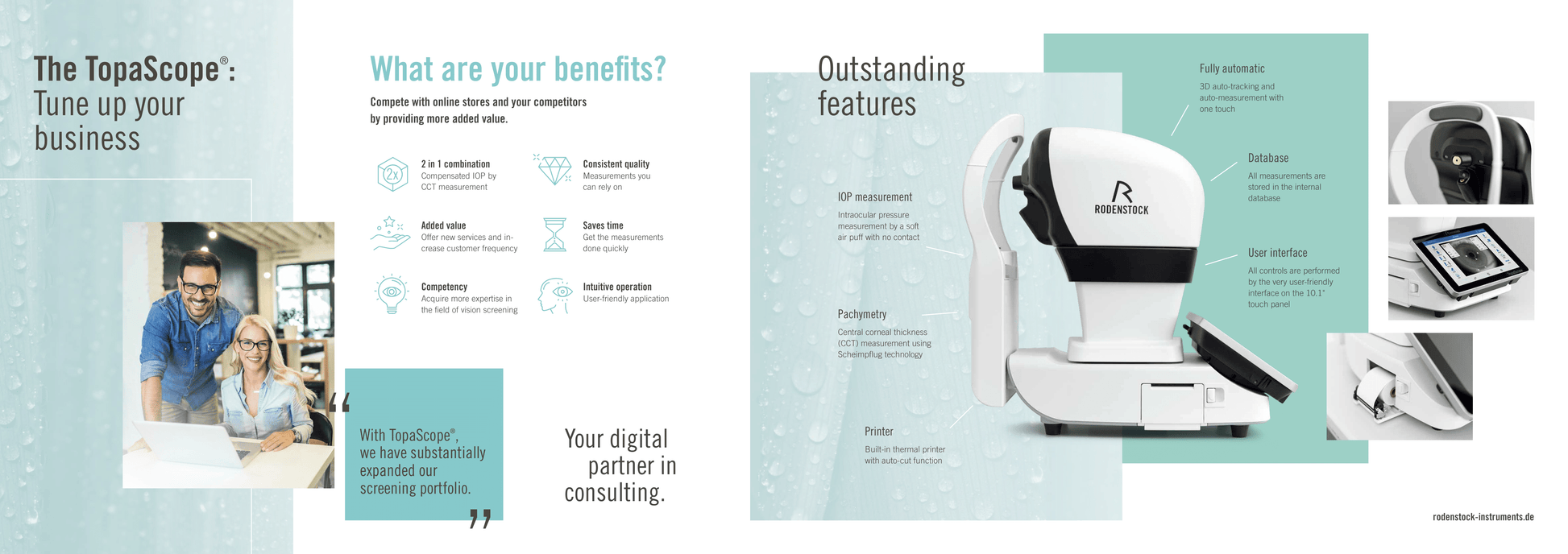

The TopaScope®
:
Tune up your
business 2 in 1 combination
Compensated IOP by
CCT measurement
Intuitive operation
User-friendly application
Competency
Acquire more expertise in
the field of vision screening
Saves time
Get the measurements
done quickly
Added value
Offer new services and in-
crease customer frequency
Consistent quality

  • Easy Setup
  • 24/7 VIP Support
View full details

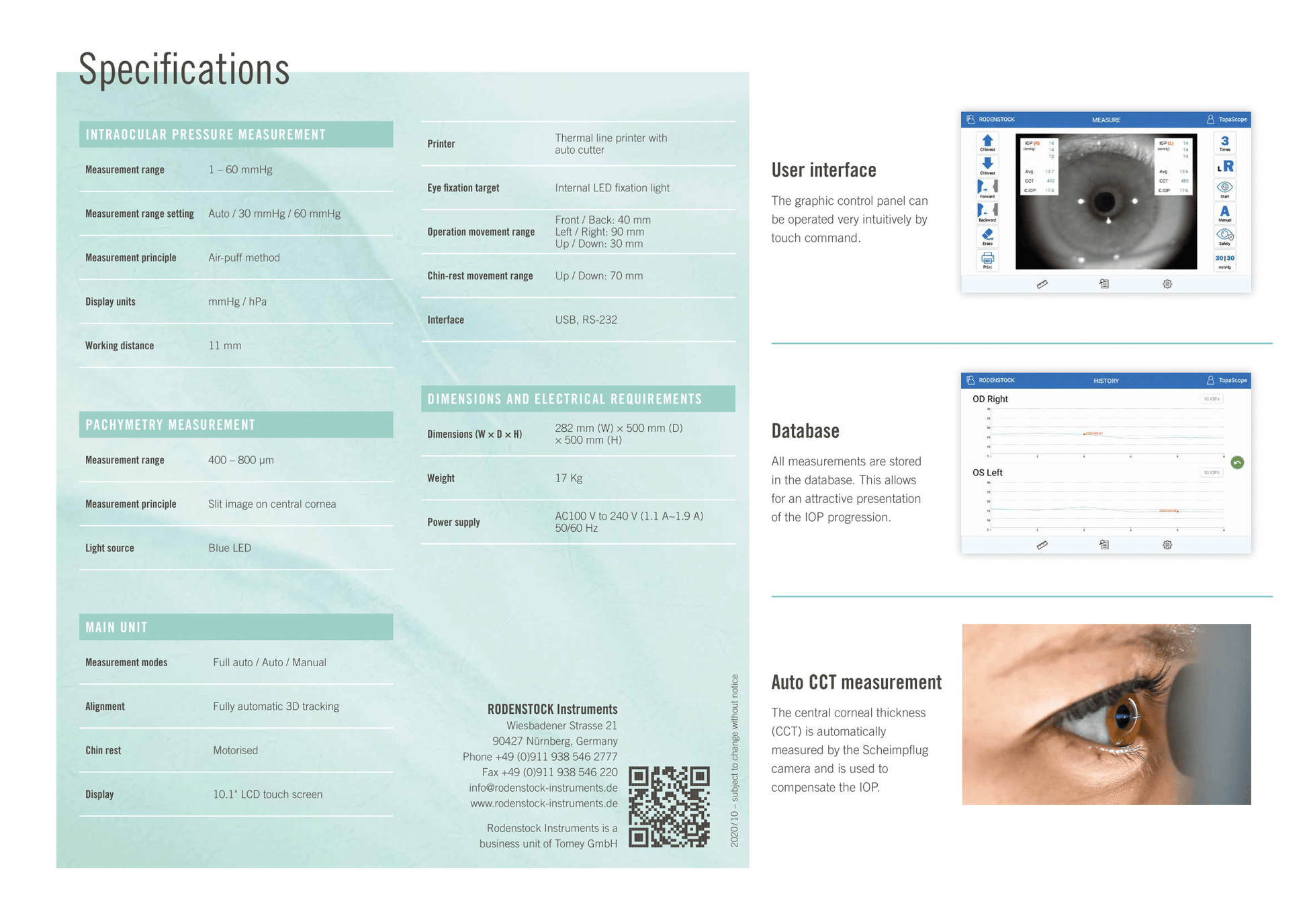

Technical Specifications

Alignment & Operation Modes

Full auto, auto, and manual alignment options; motorized chin rest for consistent positioning and patient comfort.

Motion Range (Main Unit)

X-axis: Front/Back 40 mm, L/R 90 mm; Y-axis: Up/Down 30 mm; Chin-rest: Up/Down 70 mm.

Connectivity

Supports USB, RS-232, and HDMI interfaces for seamless data transfer and integration with external systems.

Physical Specs

Dimensions: Approx. 282 × 500 × 500 mm; Weight: ~17 kg; Power: AC 100–240 V, 50/60 Hz.

TopaScope® by Rodenstock – Core Features & Benefits

Advanced 3D Auto‑Tracking & One‑Touch Operation

With fully automatic alignment and measurement, TopaScope® allows clinicians to capture intraocular pressure (IOP) readings quickly and accurately using a single soft air puff, eliminating contact and enhancing patient comfort.

Integrated Pachymetry using Scheimpflug Imaging

TopaScope® automatically measures central corneal thickness (CCT) using Scheimpflug technology—allowing IOP values to be corrected based on corneal thickness for more accurate risk assessment.

Extremely Reliable Readings

The system delivers excellent repeatability of measurements, making it ideal for routine screening, follow-ups, and patient education.

User-Friendly Touchscreen Interface

Equipped with a 10.1‑inch LCD touch display, its intuitive controls minimize user error and speed up workflow. Internal patient database lets you store and compare exam results easily.

Built-in Thermal Printer

Automatically prints detailed reports with no need for external devices, streamlining documentation and saving time.

Highly Precise Measurements


1 to 60 mmHg, selectable modes (Auto / 30 mmHg / 60 mmHg)

Soft air-puff method with non-contact operation


Approx. 11 mm from cornea

Measures CCT between 400–800 µm, ideal for accurate glaucoma risk interpretation.
