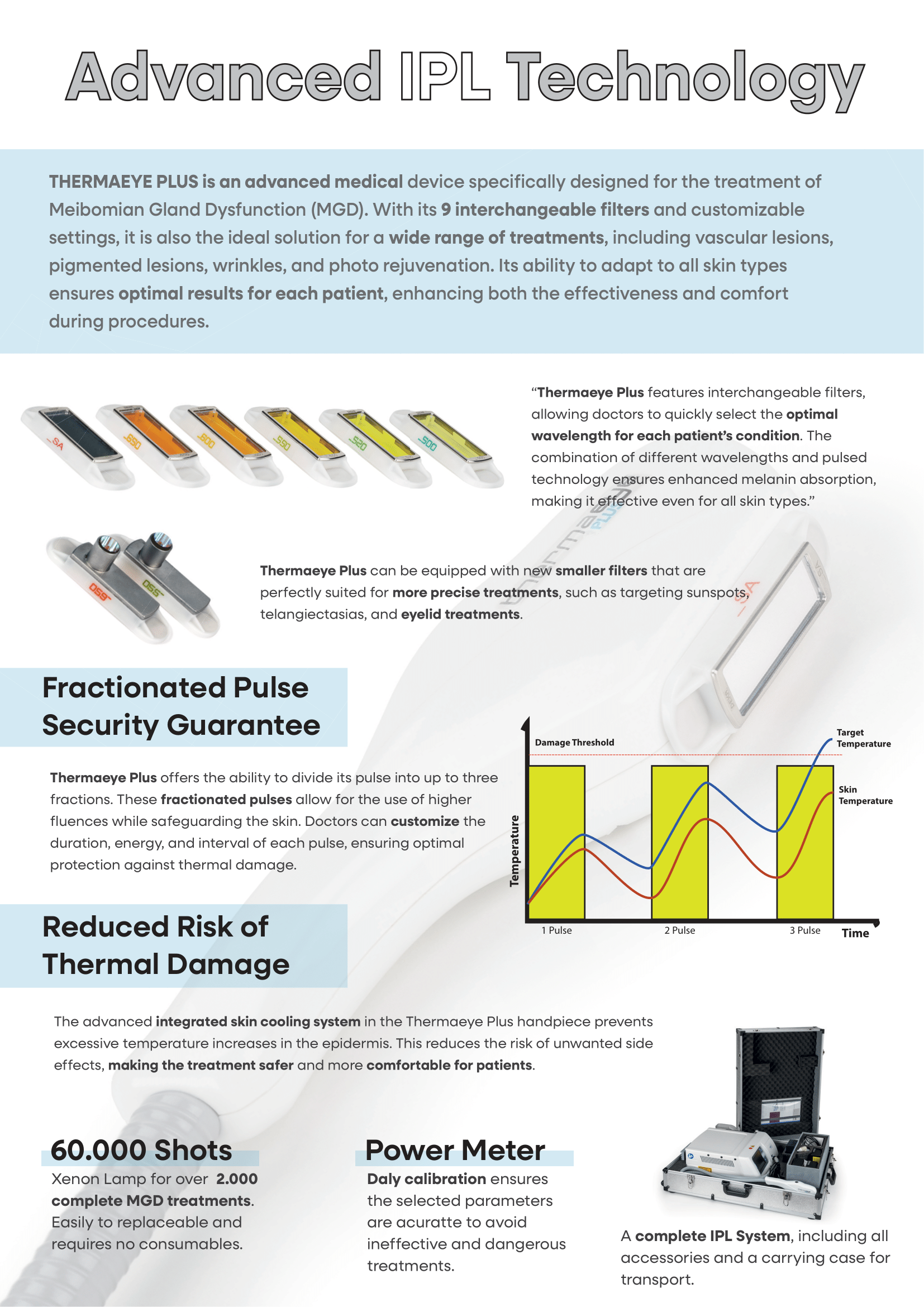

Fractional Square Pulsed Technology
Allows division of each IPL shot into up to three sequential pulses for efficient energy delivery while minimizing epidermal heat buildup and reducing thermal risk. Interchangeable Filters (520 nm, 650 nm, 800 nm)
Enables customized treatments across skin types and target indications—such as vascular lesions, pigmentation, and eyelid-related dry eye conditions.
Contact Cooling System
An integrated sapphire crystal with water-based cooling maintains skin temperature control, enhancing comfort and safety during treatment—reducing risks like redness or burns.
Automatic Energy Calibration
Built-in calibration ensures each shot delivers the correct fluence for consistent results and enhanced device reliability. High-Efficiency Xenon Lamp
Provides up to 2000 treatments per lamp without cartridges or consumables, lowering long-term operating costs.

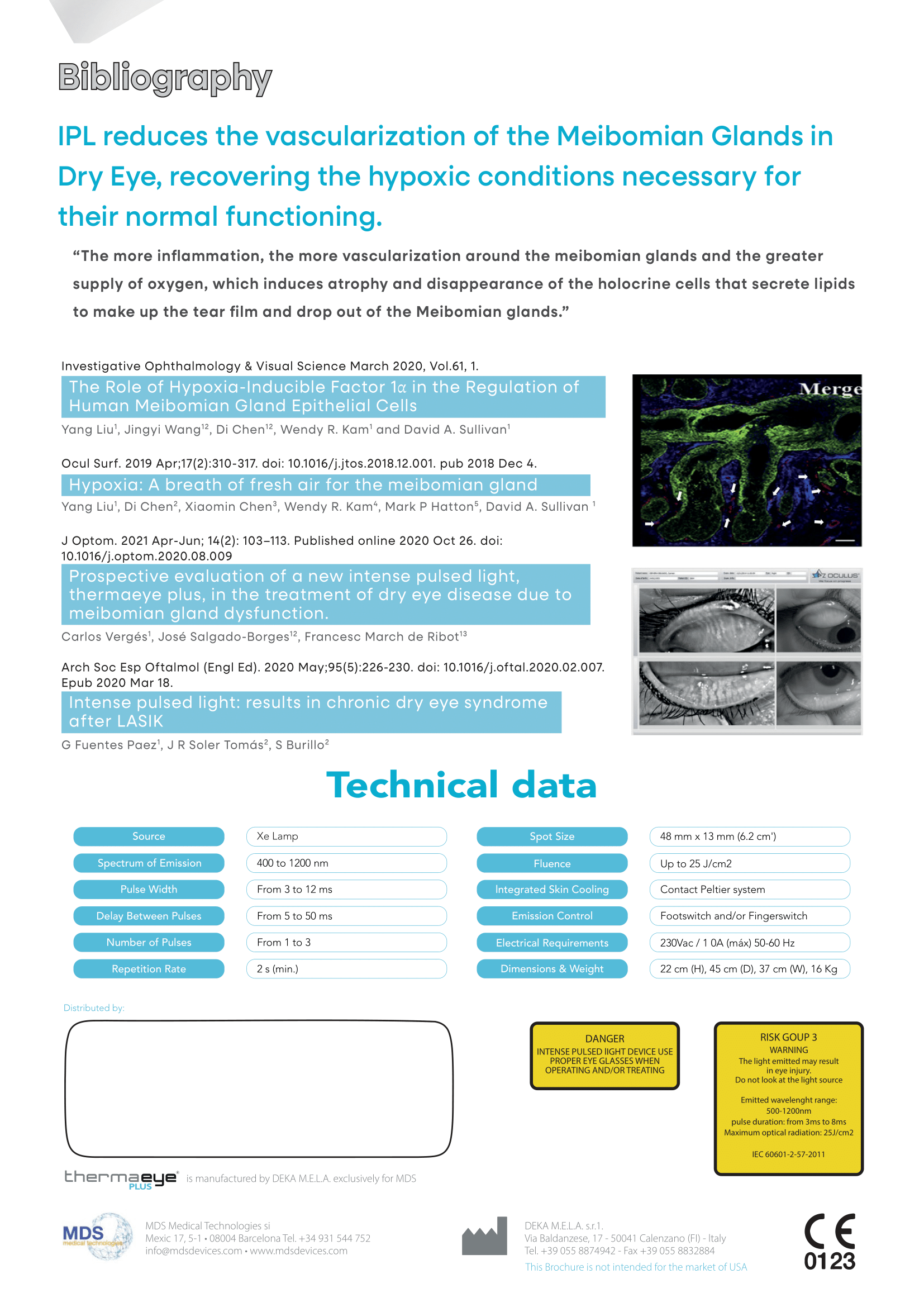

Tech Specifications
Emission Spectrum
Broadband IPL emission: approximately 400–1200 nm via xenon flash lamp.
Pulse Settings
Pulse width: 3–12 ms per pulse
Interval between pulses: 5–50 ms
Pulse count: 1 to 3 subdivisions per shot
Repetition rate: ~2 seconds between shots
Maximum Fluence
Capable of delivering up to 25 J/cm² when using fractionated pulses.
Spot Size
Approximately 48 × 13 mm (6.2 cm²) handpiece aperture.
Emission Control & User Interface
Operation via footswitch or finger switch; supports real-time monitoring with shot counter, lamp hours, and skin temperature readout.
Power Requirements
Operates on standard 230 V AC (with 10A, 50–60 Hz mains input).
System Dimensions & Weight
Height: 22 cm Depth: 45 cm Width: 37 cm Weight: 16 kg.
Key Indications
Treats ocular and dermatological conditions including:
Dry eye due to MGD, ocular rosacea, telangiectasia, solar lentigines, wrinkles, acne, vascular lesions. Offers eyelid-level treatment with safety standards compliant for thin eyelid zones.
