SL-100

SL-100

Excellent

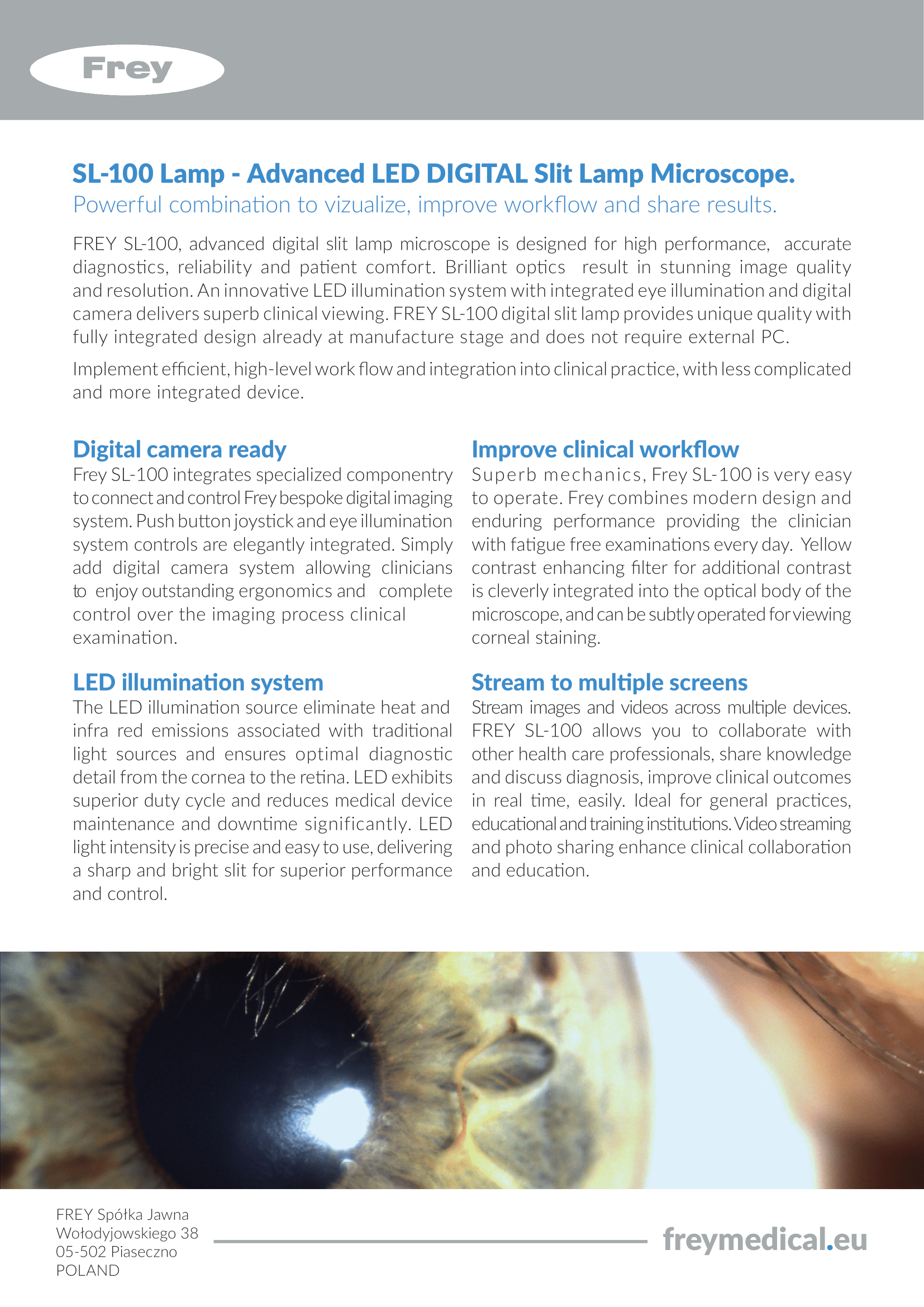

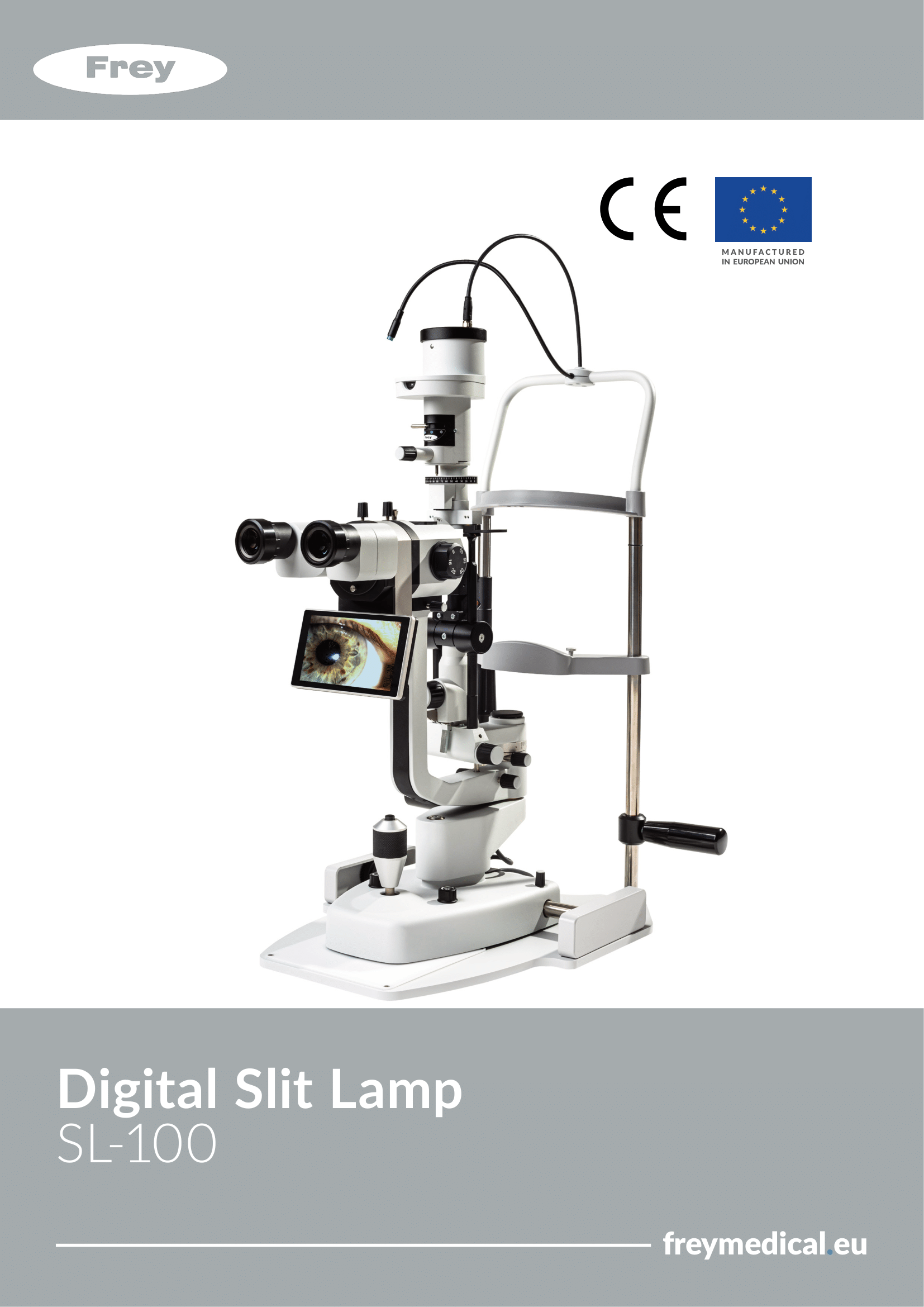

FREY SL-100, advanced digital slit lamp microscope is designed for high performance, accurate
diagnostics, reliability and patient comfort. Brilliant optics result in stunning image quality
and resolution. An innovative LED illumination system with integrated eye illumination and digital
camera delivers superb clinical viewing. FREY SL-100 digital slit lamp provides unique quality with
fully integrated design already at manufacture stage and does not require external PC.
Implement efficient, high-level work flow and integration into clinical practice, with less complicated
and more integrated device.

Get Quote
  • Easy Setup
  • 24/7 VIP Support
View full details

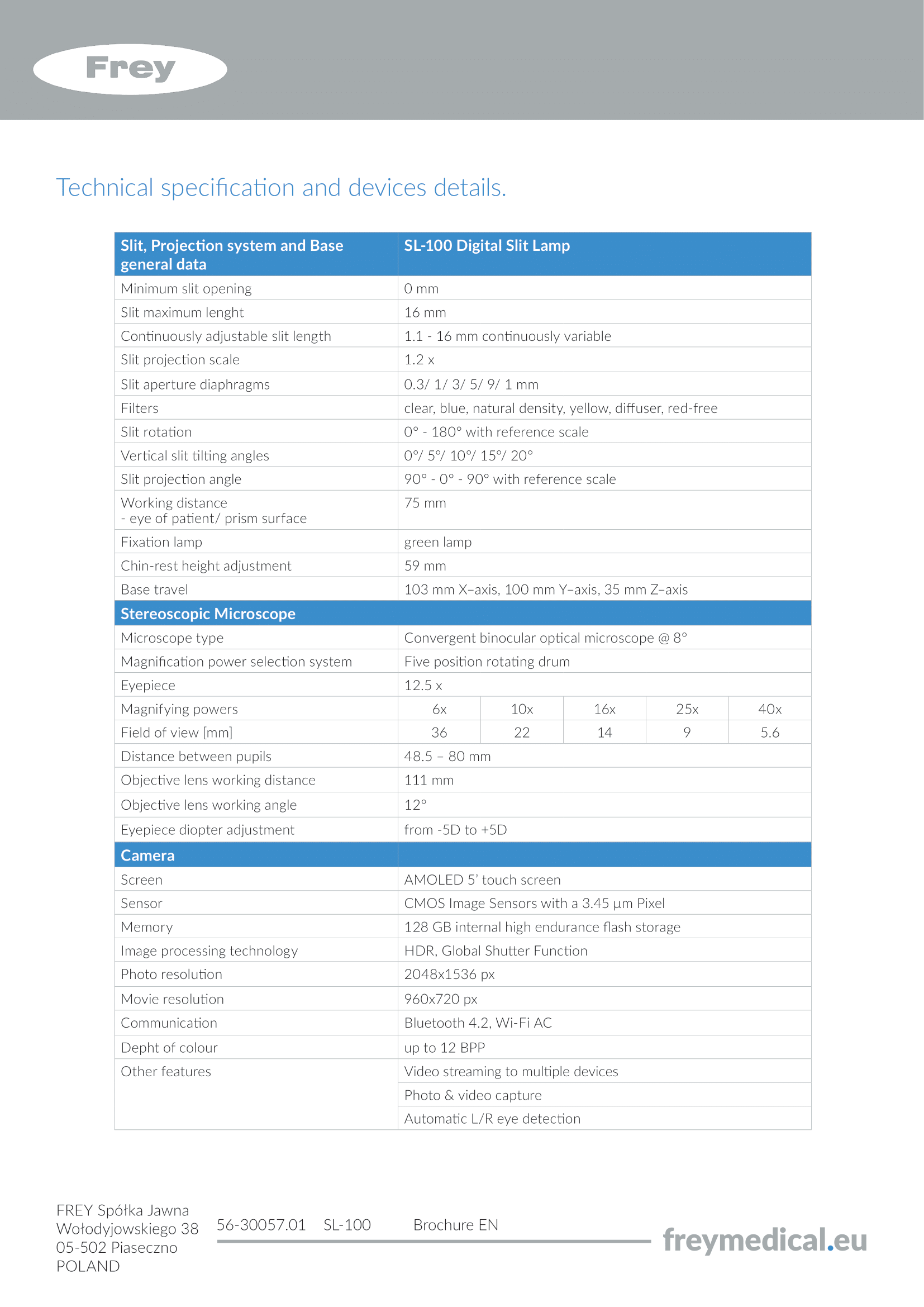

SL-100 Digital Slit Lamp – Key Specifications

Optical System


: 6x, 10x, 16x, 25x, 40x


: 12.5x with diopter adjustment from -5D to +5D

: 111 m
: 12°

: 48.5 mm to 80 mm

Illumination System


: LED with integrated eye illumination


: 0.2 mm to 14 mm, continuously adjustable


: 1.8 mm to 14 mm, continuously variable


: 0° to 180° with reference scale


: Clear, blue, natural density, yellow, diffuser, red-free

Microscope Features


: Convergent binocular optical microscope at 8°

: 75 mm


: Green lamp


: 59 mm


: 103 mm (X-axis), 100 mm (Y-axis), 35 mm (Z-axis)

Digital Imaging Integration


: Integrated digital camera control electronics


: Ready for Frey's proprietary digital camera system


: Push-button joystick and integrated eye illumination system controls

Build and Design


: Manufactured in Poland with high-quality optics


: 2-year warranty

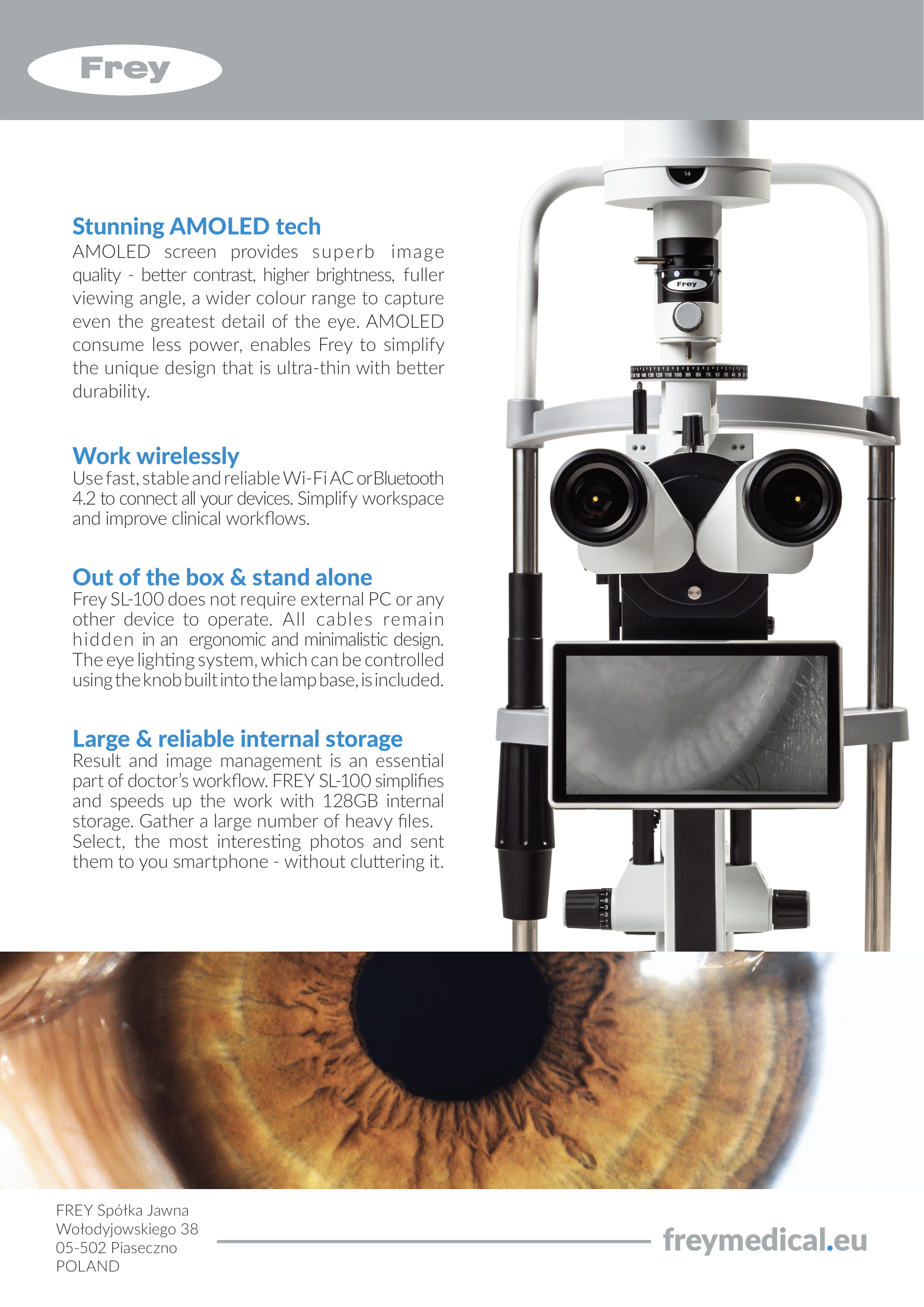

AMOLED Technology

Active Matrix Organic Light-Emitting Diode (AMOLED) is a next-gen display tech that powers some of the crispiest screens out there — think vibrant colors, deep blacks, and crazy-fast response times.

Unlike traditional LCDs, AMOLED pixels emit their own light individually, so when a pixel’s off, it’s truly black, giving insane contrast ratios and energy efficiency. The “Active Matrix” part means each pixel is controlled precisely by a thin-film transistor (TFT) array, allowing for faster refresh rates and better control over image quality.

AMOLED screens are thinner and more flexible, making them perfect for everything from smartphones to cutting-edge medical devices that need sharp, bright, and reliable displays.

Slit Lamp Illumination System

The slit lamp’s illumination lamp is usually a high-intensity LED or halogen light source designed to provide bright, consistent, and adjustable lighting for detailed eye examinations.

Key Features:

Allows clinicians to control the light beam size from narrow slits (as small as 0.2 mm) to wide beams (up to 14 mm), adapting to different diagnostic needs.

Brightness can be precisely tuned to optimize patient comfort while maintaining clear visualization of ocular structures.


Equipped with color filters like blue, red-free (green), yellow, and neutral density filters, enabling enhanced contrast for specific diagnostic tasks like fluorescein staining or vessel examination.

The lamp can rotate 0° to 180°, letting practitioners inspect the eye from various angles without moving the patient.

Modern LED lamps provide cool, stable illumination with extended lifespan and minimal heat output, enhancing safety and reducing maintenance.
