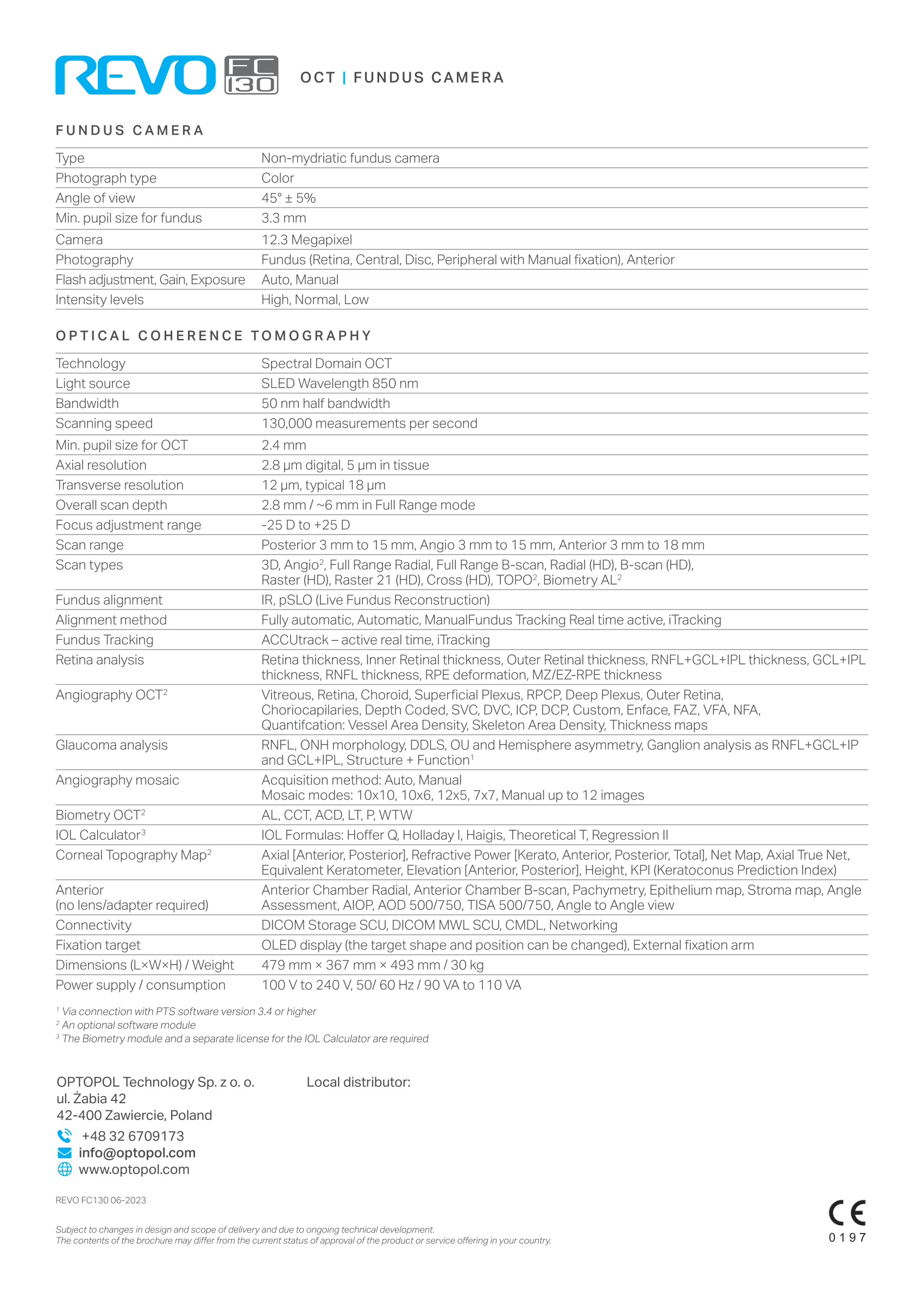

Scanning Speed
130,000 A‑scans per second Axial Resolution
2.8 µm digital (5 µm in tissue)
Transverse Resolution
Typical 12 µm (laterally ~18 µm) Scan Depth

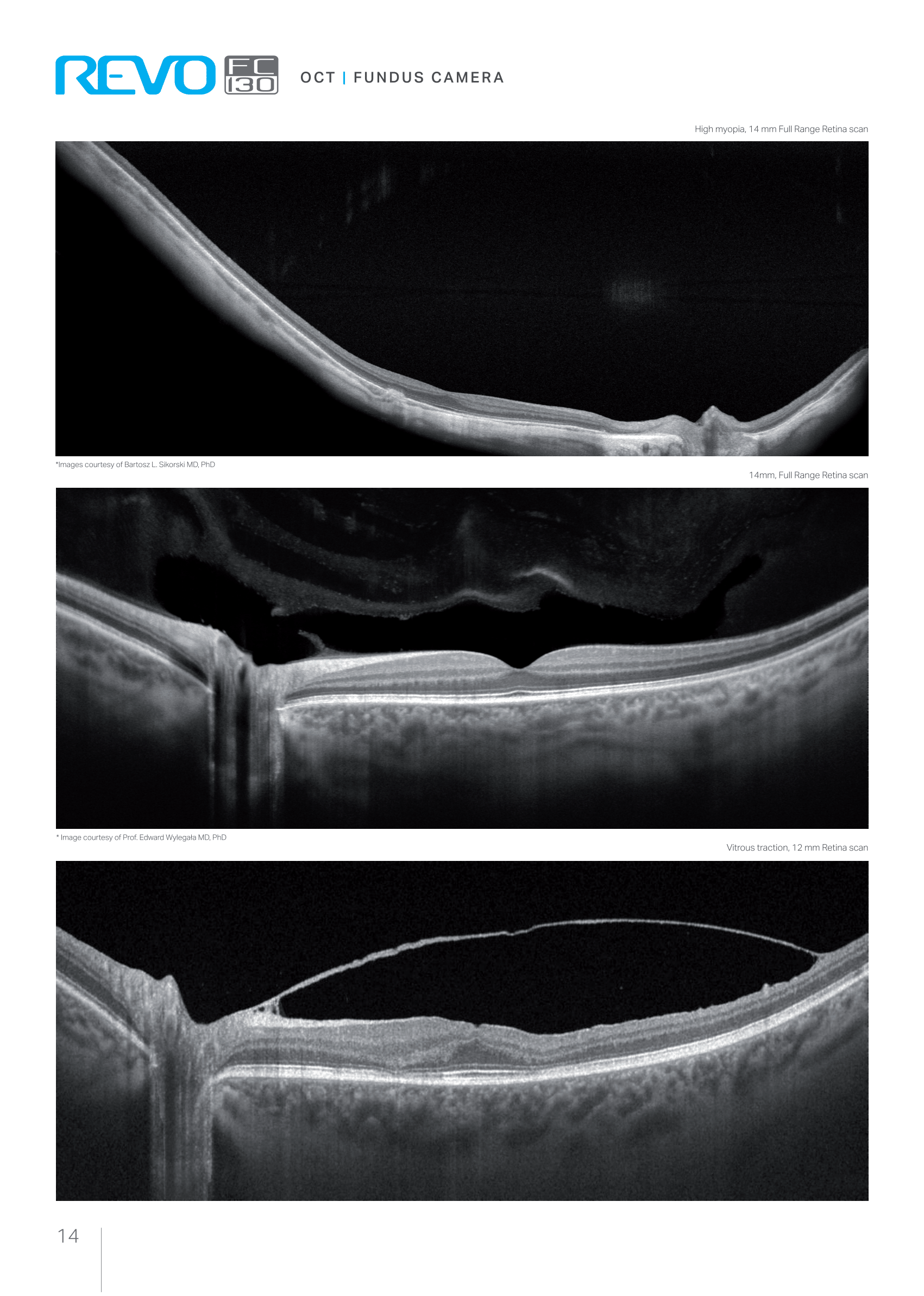

2.8 mm standard, ~6 mm in Full Range™ mode Pupil Requirements
Fundus: min 3.3 mm | OCT: min 2.4 mm
Focus Range
Adjustable from −25 D to +25 D for varied refractive errors Eye Tracking & Motion Correction

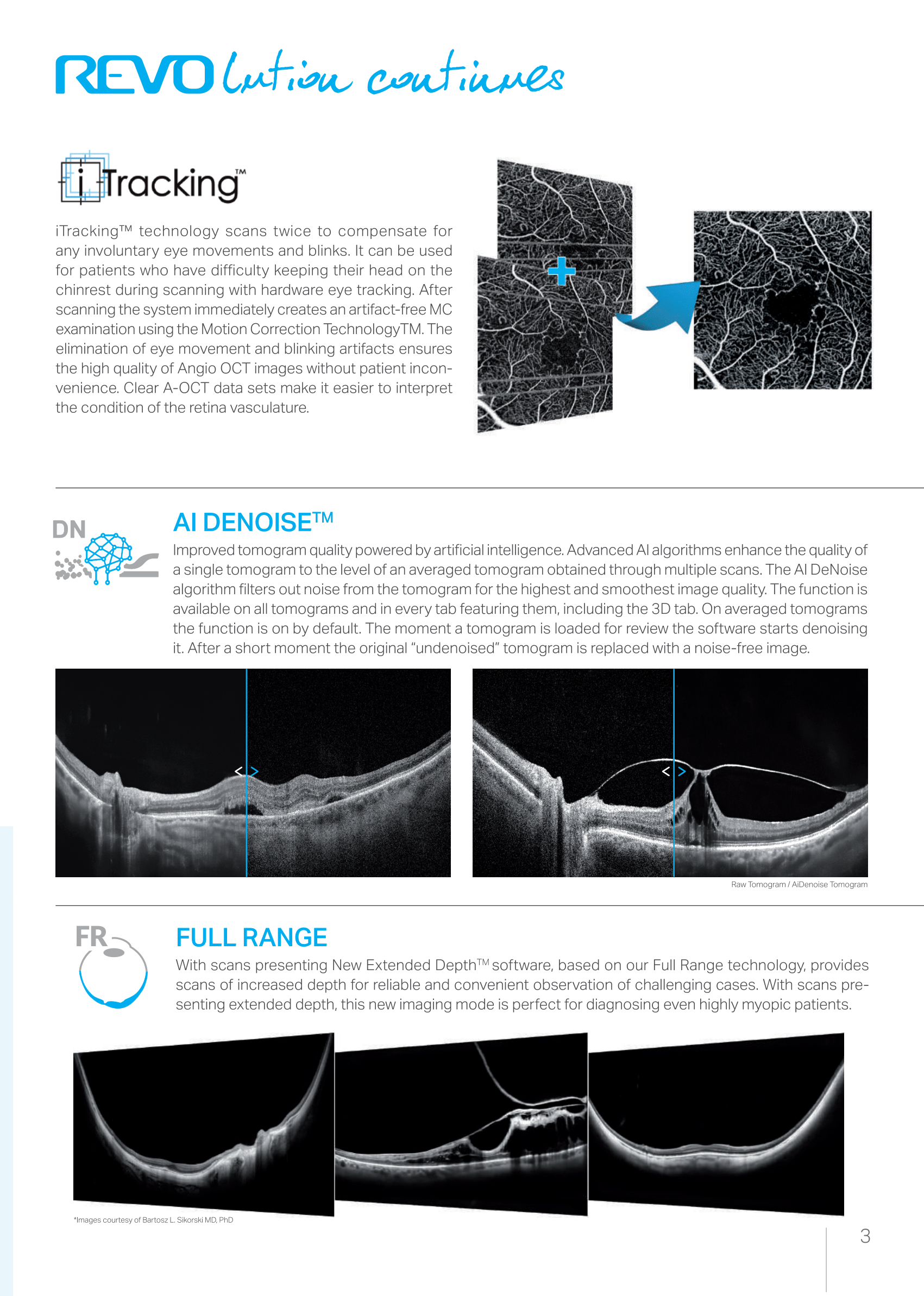

AccuTrack™ real‑time hardware tracking + iTracking software built-in for artifact-free images AI Denoise™ Technology
AI-powered noise reduction that enhances single-scan image clarity to match averaged tomograms Fundus Camera Specs

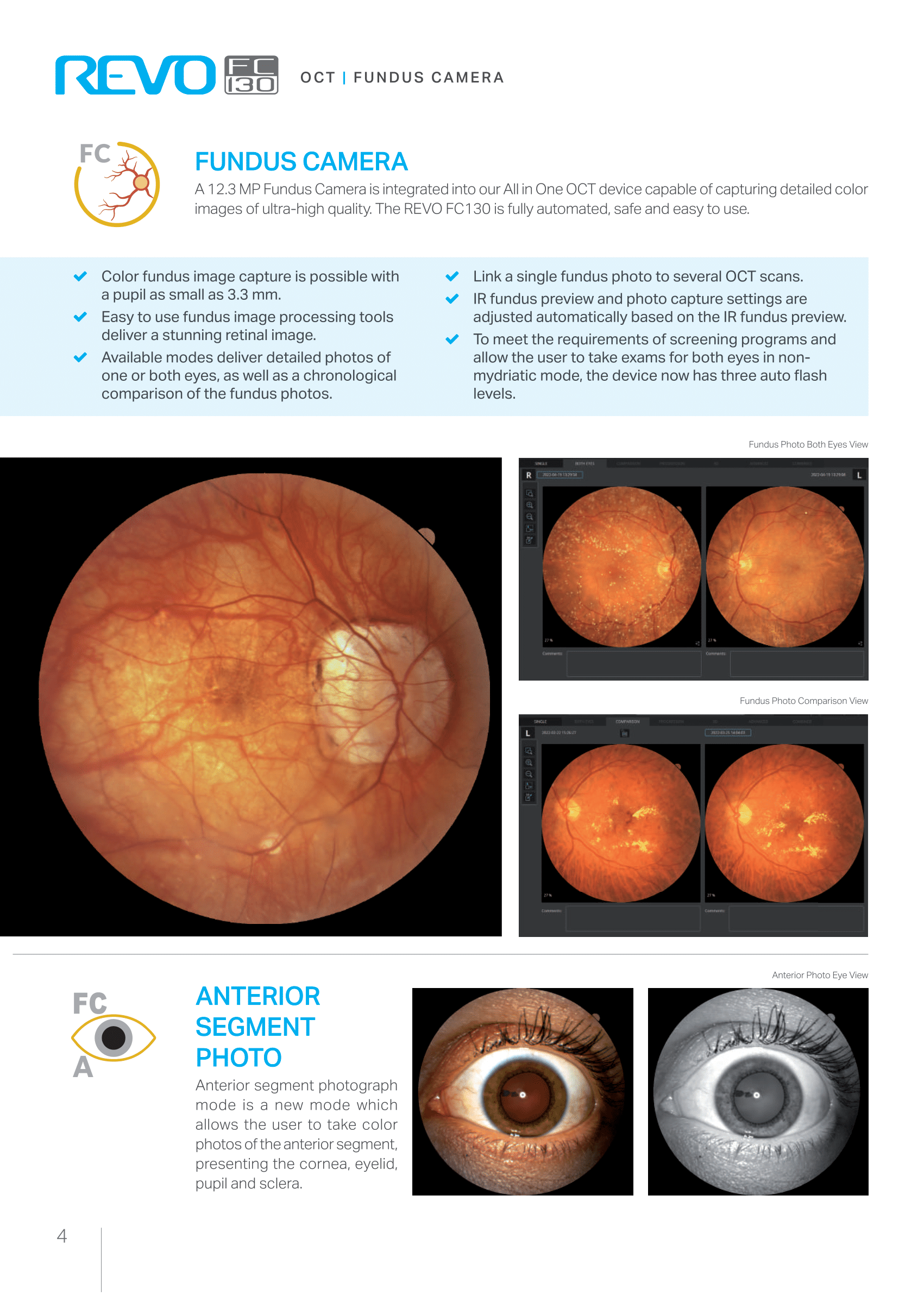

12.3 MP non-mydriatic. 45° field of view. Fully automated: auto-align, auto-focus, auto-flash, auto-capture Scan Protocols & Modes

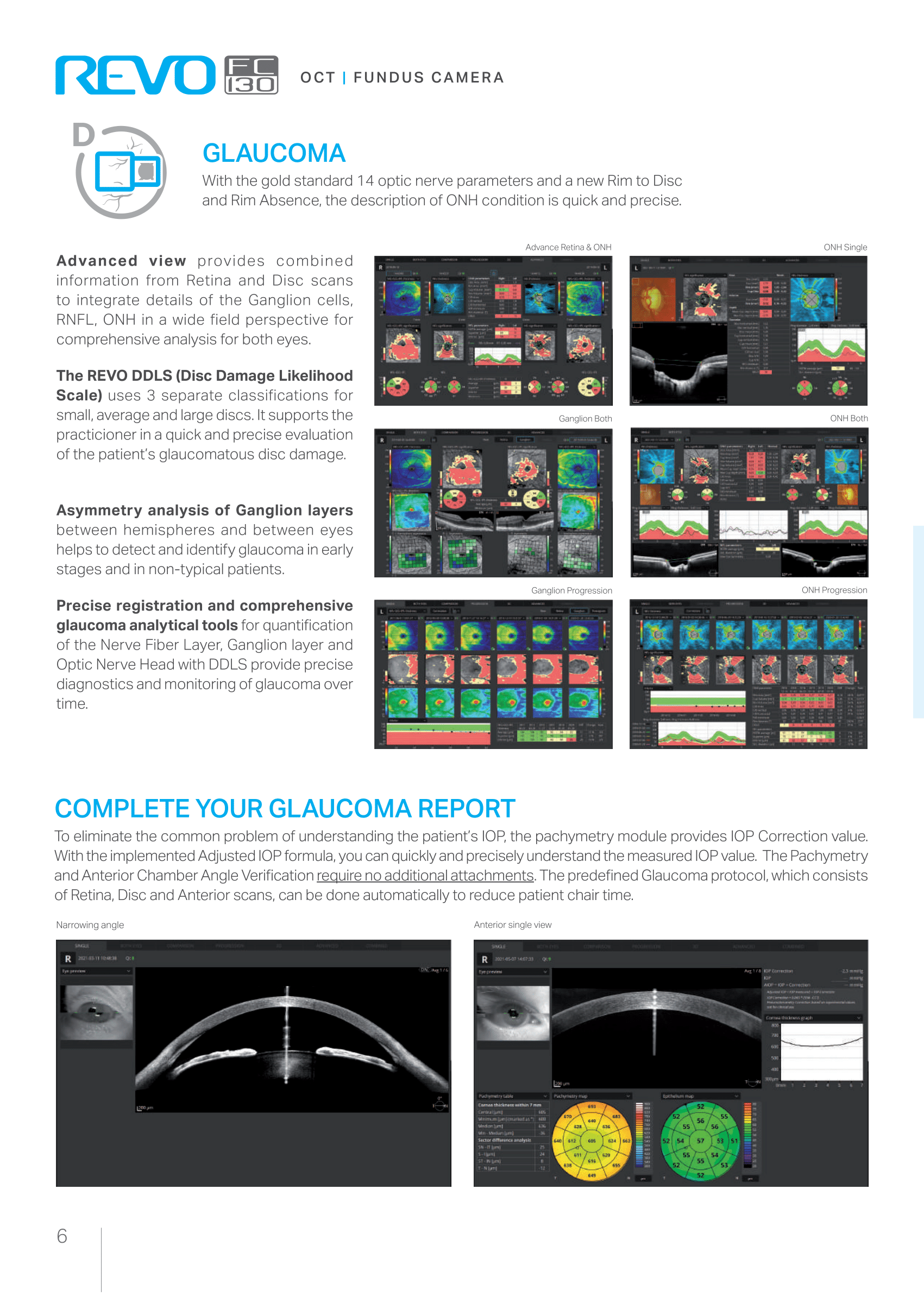

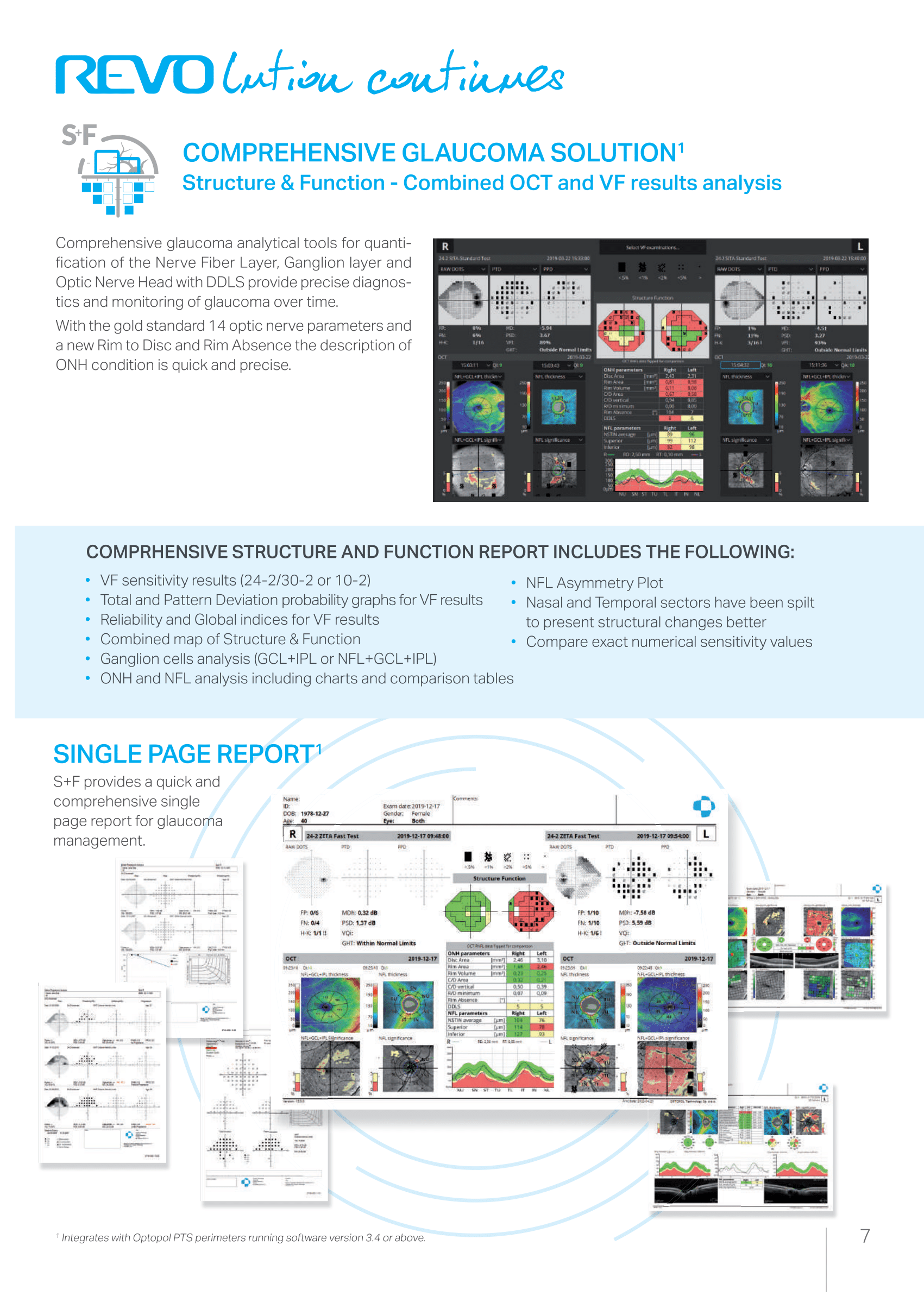

Posterior, Anterior, Angio, Topography, Biometry, Glaucoma toolkit, IOL calculator, Wide-field 3D, Full Range radial/B-scan, Raster, Cross, etc Connectivity & Export
DICOM, network sharing, Windows Pro system. Export in PDF, JPEG formats, or to EHR systems
Battery & Footprint
Compact tabletop design. Single-cable operation simplifies setup and saves space
Optional Add-On Modules

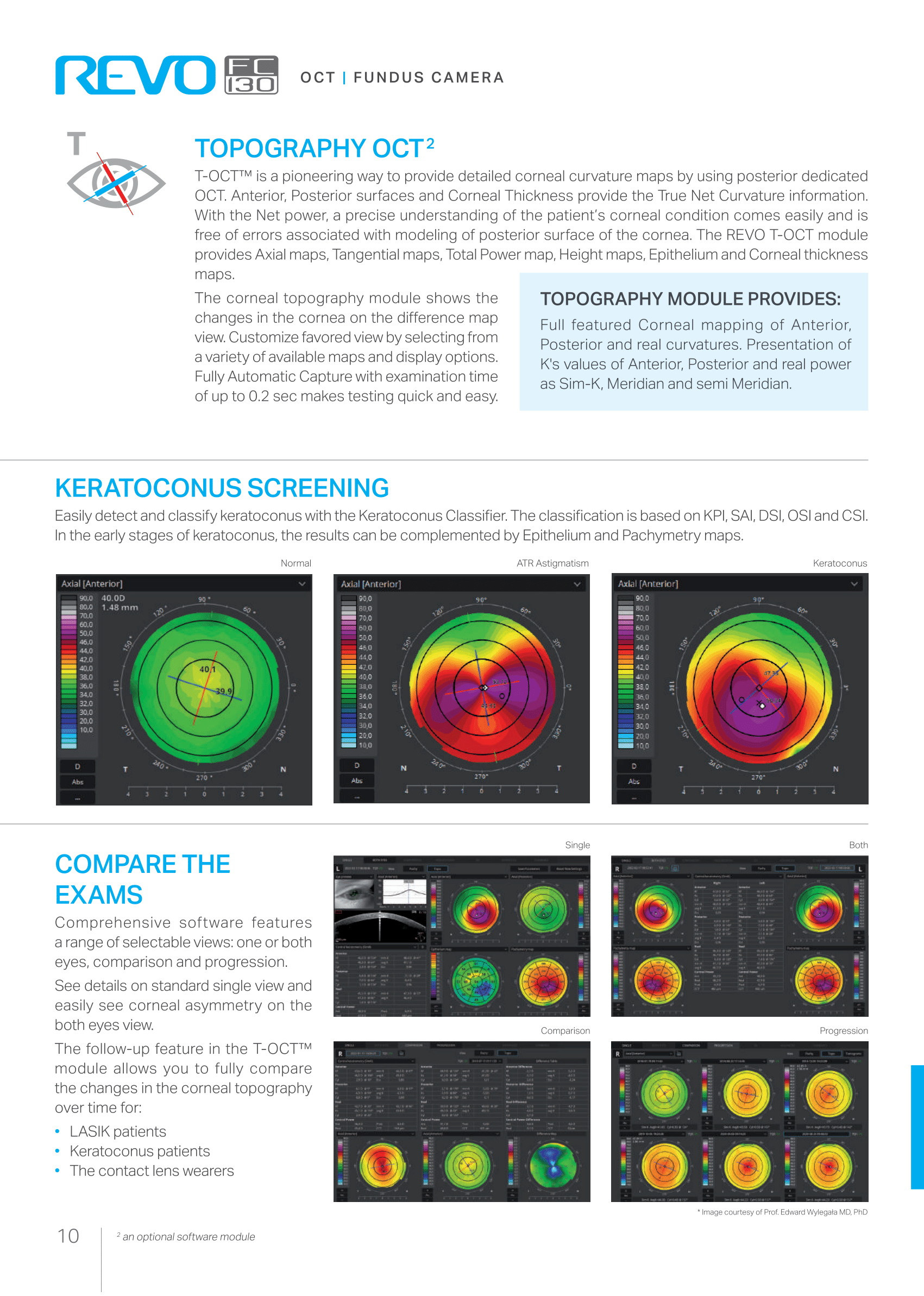

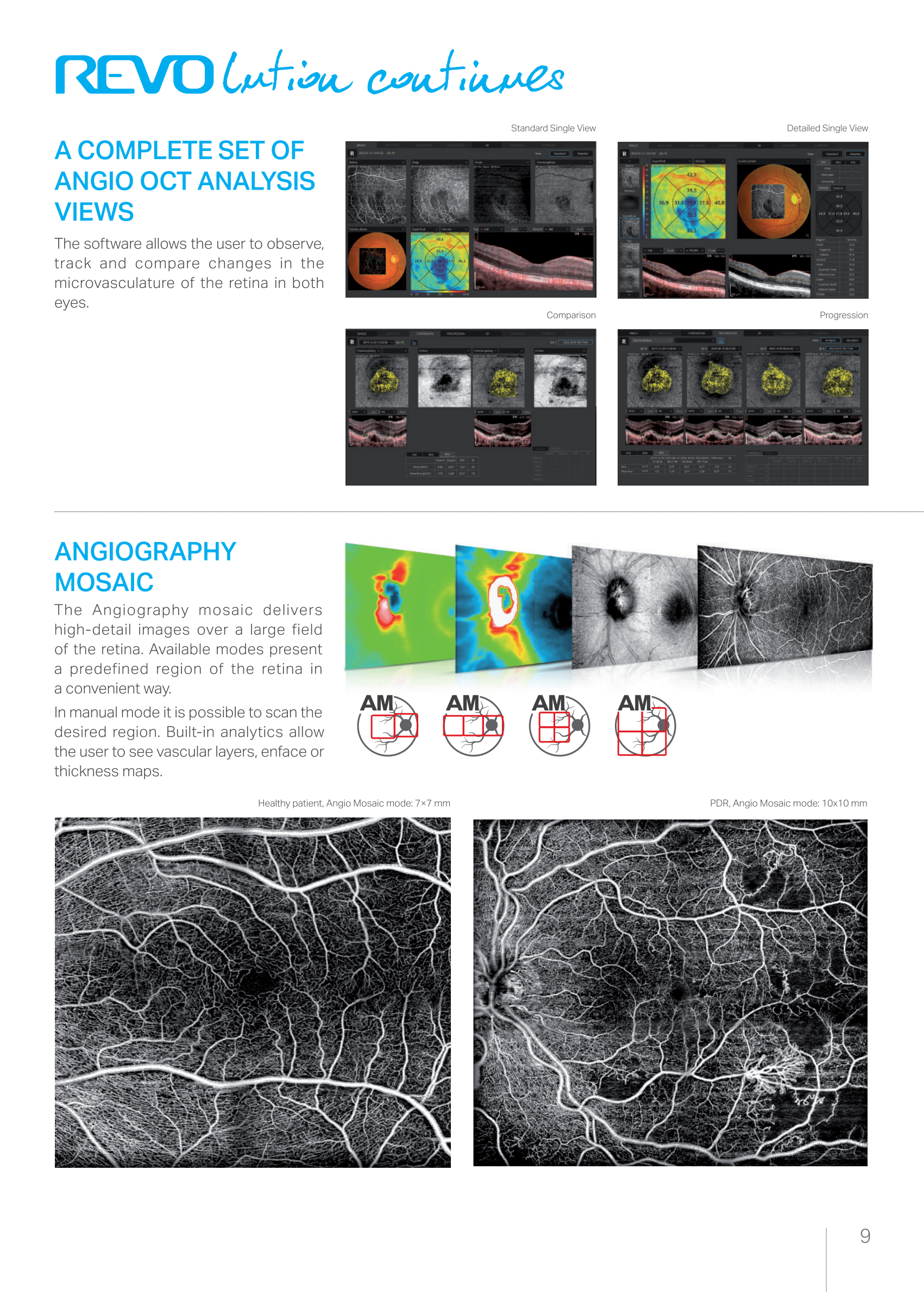

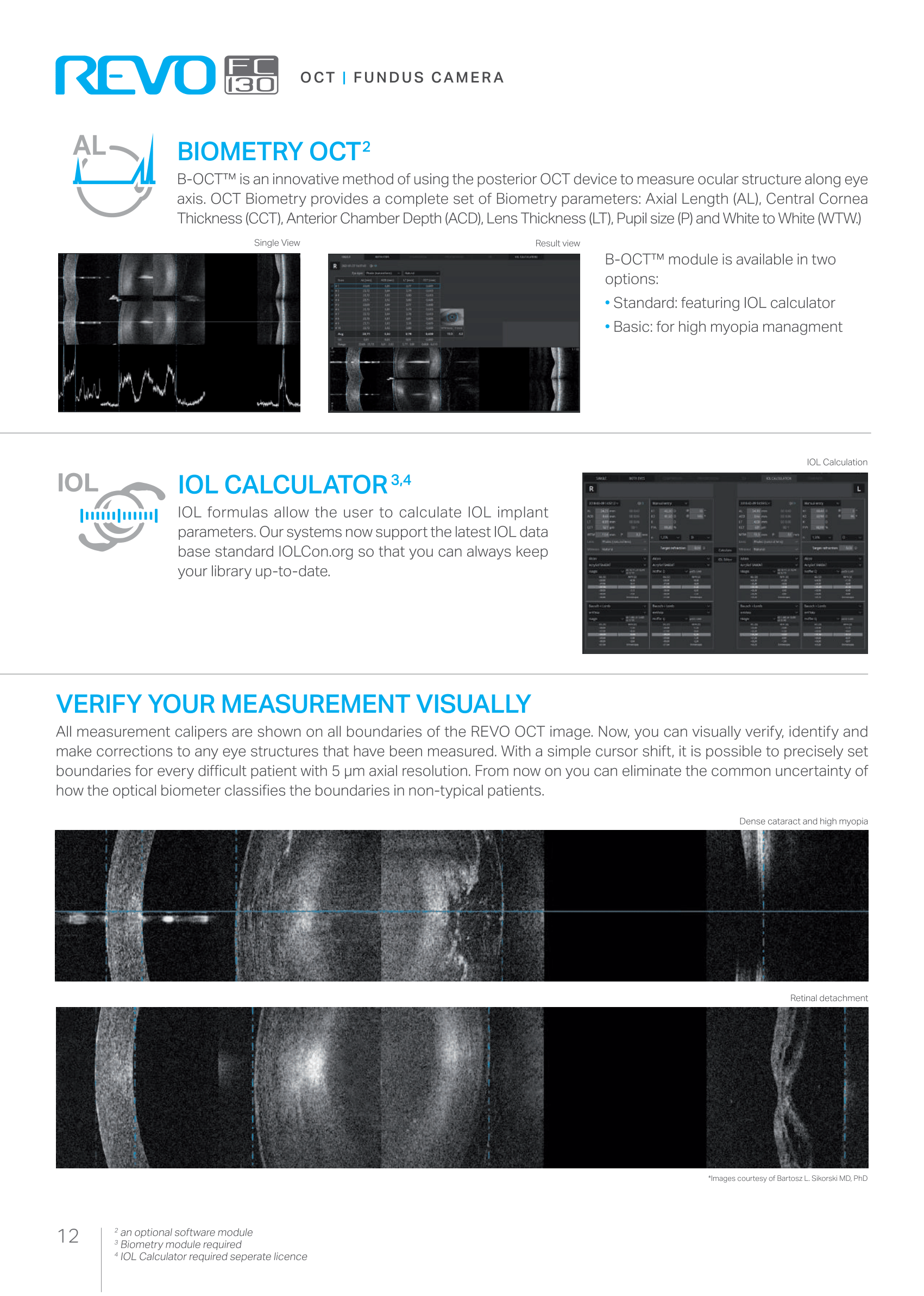

OCT-Angiography, T‑OCT™ Corneal Topography, B‑OCT® Biometry, IOL Calculation, Ultra-Widefield (UWF) Imaging

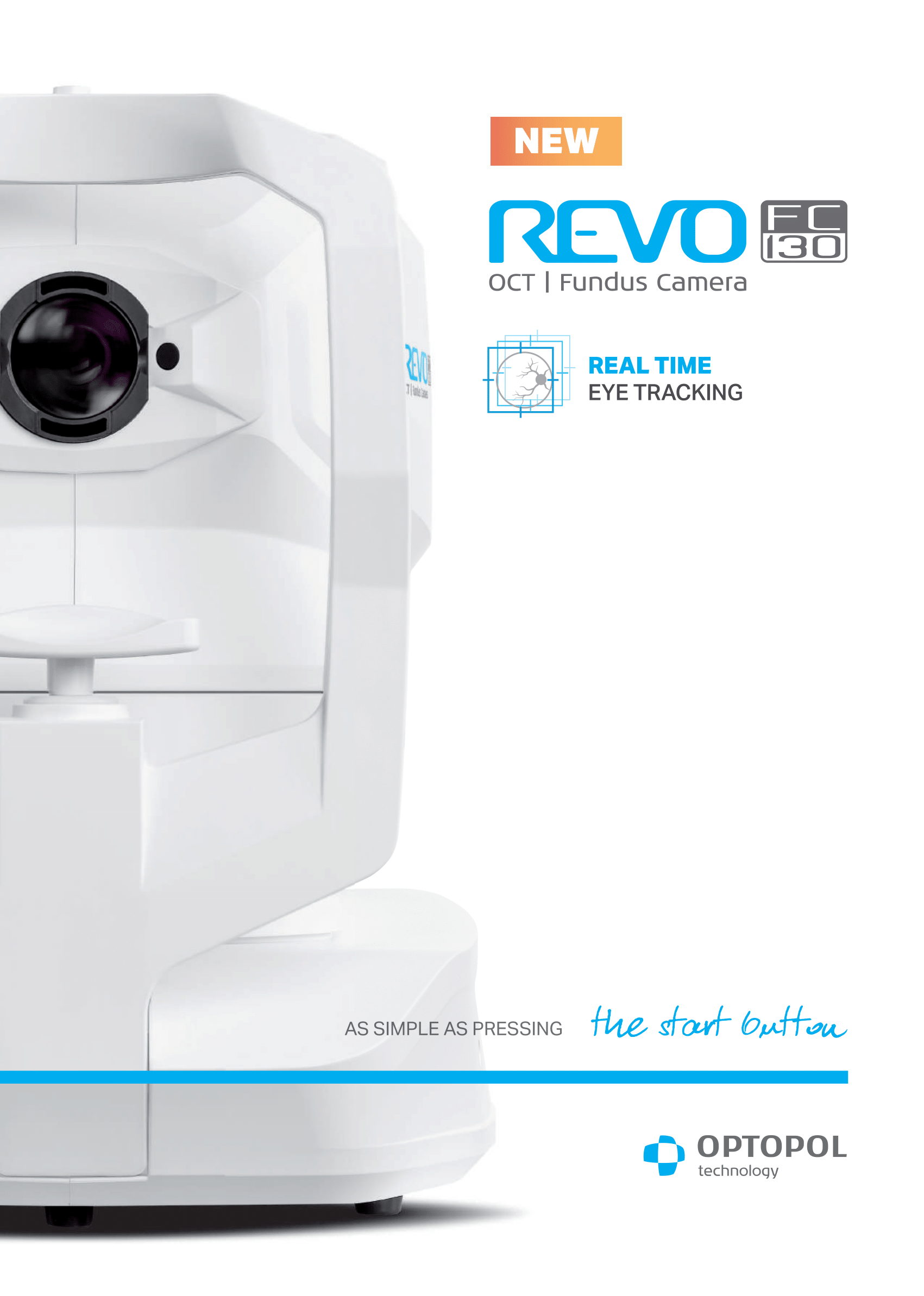

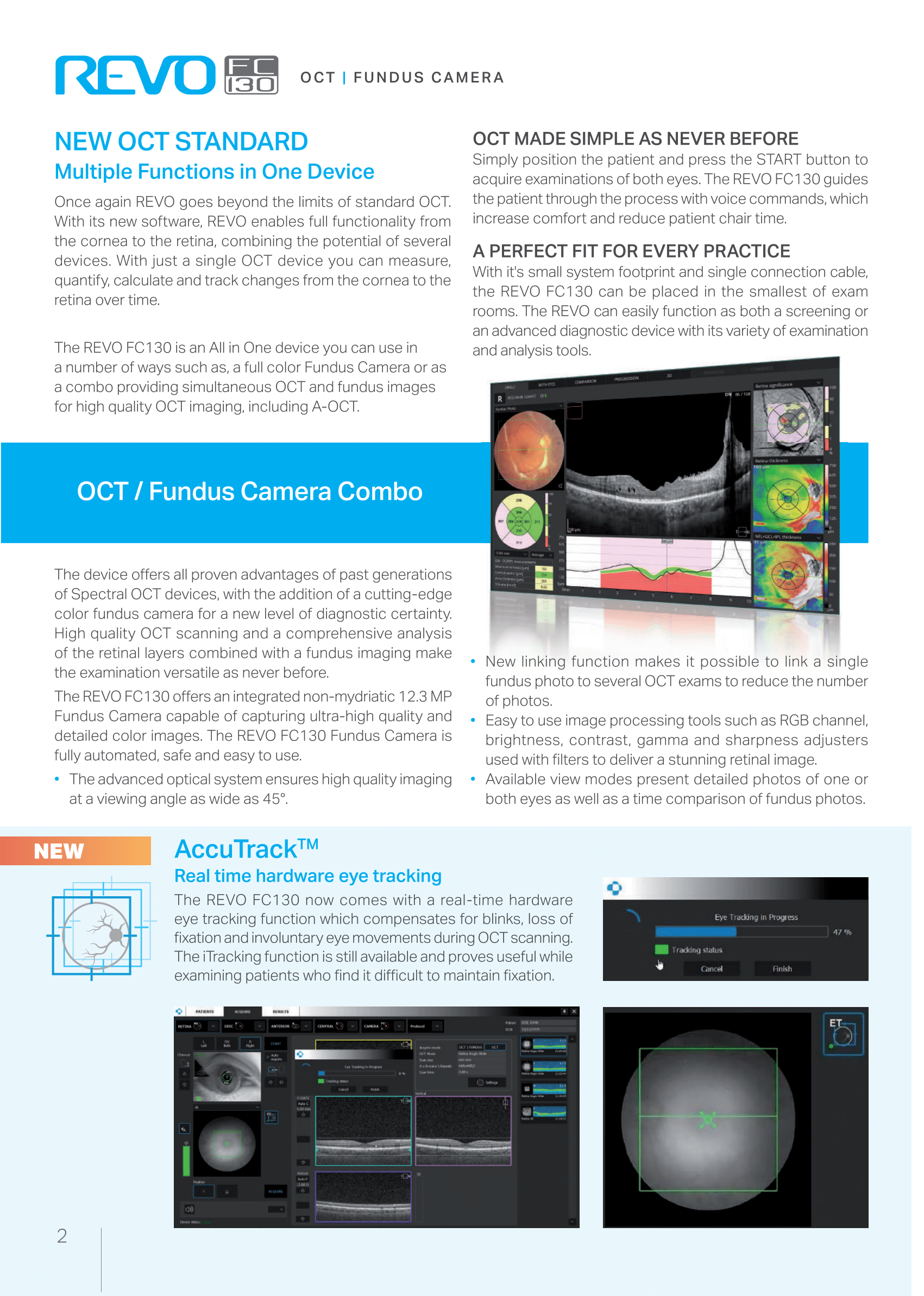

The REVO FC 130 combines ultra‑fast Spectral-Domain OCT (SD‑OCT) with a 12.3 MP non-mydriatic color fundus camera. Engineered for seamless diagnostics from posterior to anterior segments, it delivers high-speed image capture, automated workflows, and optional software modules for advanced analysis.
Design
Modern, space-efficient layout with ergonomic arrangement to ensure user comfort and professional presentation.
Table Movement
Smooth and motorized horizontal movement for accommodating multiple devices, easily controlled via a touch panel.
Chair
Fully adjustable examination chair with silent, electric height adjustment and comfortable upholstery.
Control Panel
Intuitive, backlit control panel for effortless table and chair operation.
Compatibility
Compatible with most phoropters and slit lamps. Customizable tabletop configurations are available.
Lighting
Integrated LED lighting system for optimal visibility and ambient effect.
Power Supply
Multiple built-in electrical outlets for connecting diagnostic devices. Surge protection included.
Safety Features
Emergency stop function and safety sensors for user and patient protection.
