1 6

Pro 1000

Pro 1000

Excellent

Single source
One provider with
numerous compatible
devices
Quality and style
Proven quality meets
fresh design
Perfect fit
The best solution for every
room size. Right- or left-
handed installation possible.
Stability and safety
Thanks to the solid
steel base plate
Easy touch control
Switch the devices on/off
via the touch pad
Comfortable operation
Electrical height control
and reclining system for
the patient chair
Designed to meet all
your expectations.
These refraction units
are the best example
of how usability and
elegant design work
hand-in-hand.

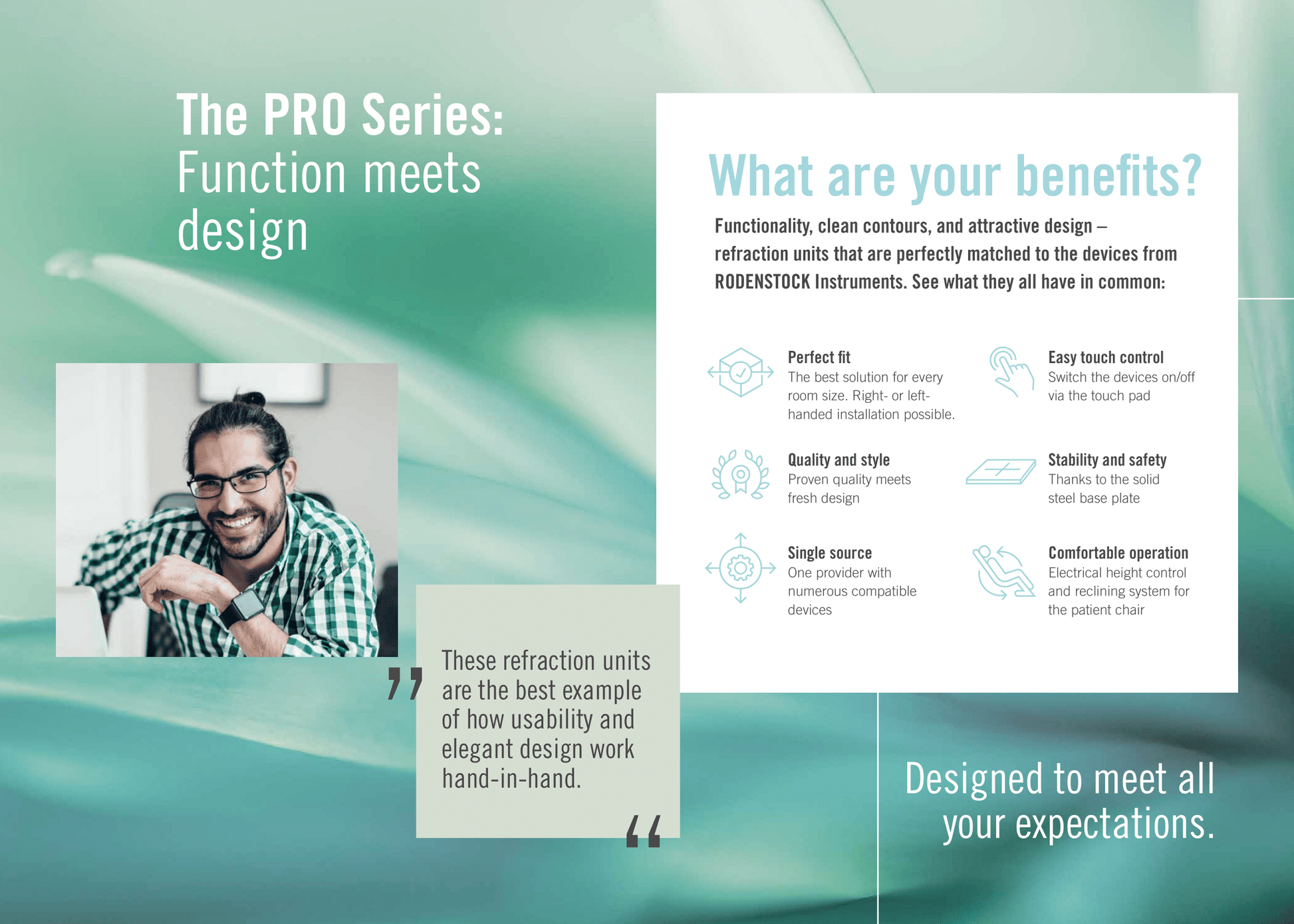

The PRO Series:
Function meets

Get Quote
  • Easy Setup
  • 24/7 VIP Support
View full details

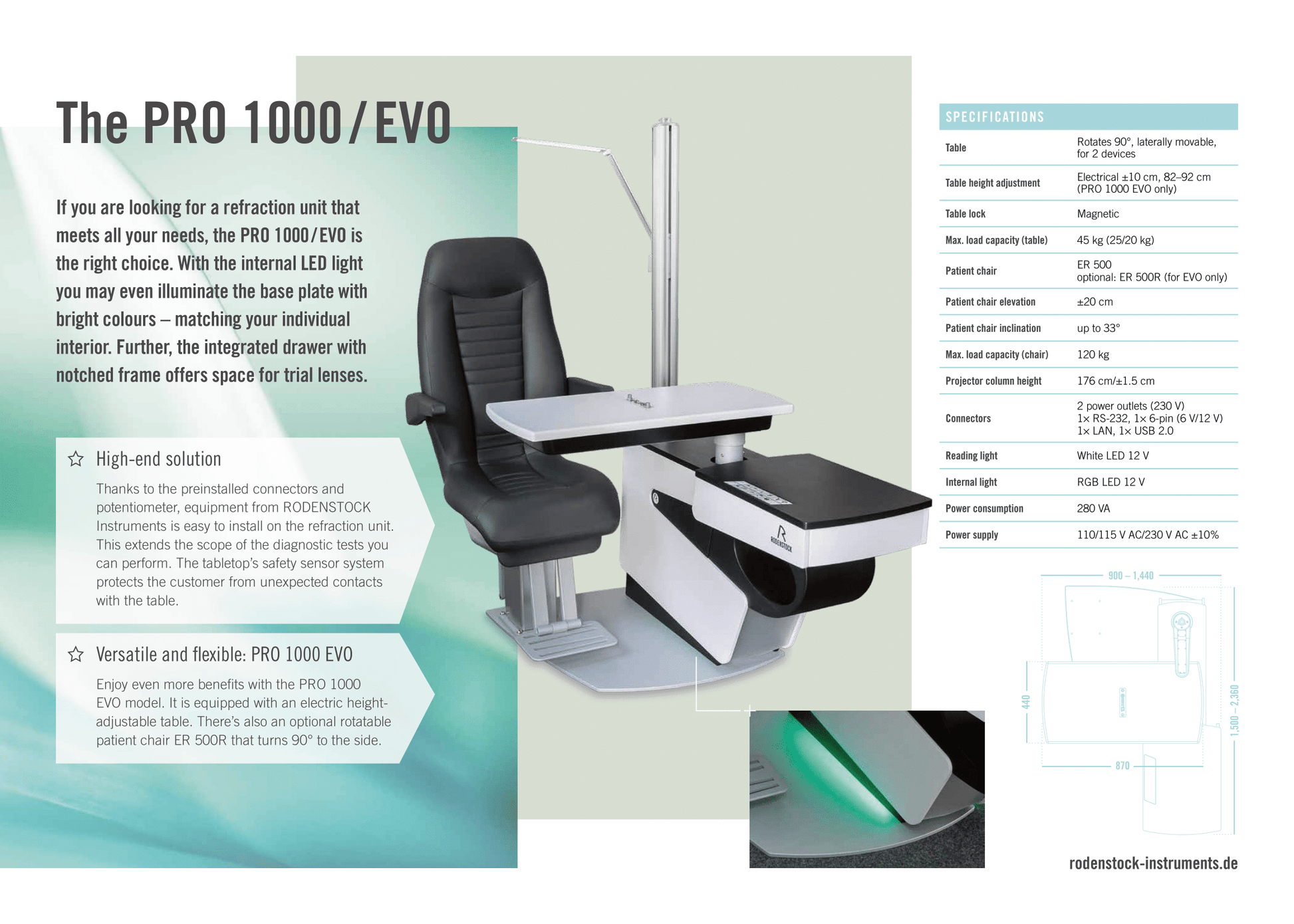

Key Specifications

Chair Model Options

ER 500: Inclinable chair

ER 500R: Inclinable and rotating chair

ER 500R with LED light: Includes integrated LED lighting

Device Table

Rotating and sliding surface supporting two instruments with mechanical locking

Electrical height adjustment available in EVO version

Electromagnetic Brake

Ensures stable locking of the device table during use

Integrated Storage

Accessories drawer for trial lenses and essentials

Connectivity Ports

Two power sockets (230V), RS-232, 6-pin (6V/12V), LAN, and USB 2.0 ports for seamless device connection

Lighting

Column-mounted LED light and internal RGB LED ambient lighting

Dimensions

Width ranges from 900mm to 1440mm

Depth ranges from 1500mm to 2360mm

Chair load capacity up to 120 kg

Total weight approximately 195–215 kg (without chair)
