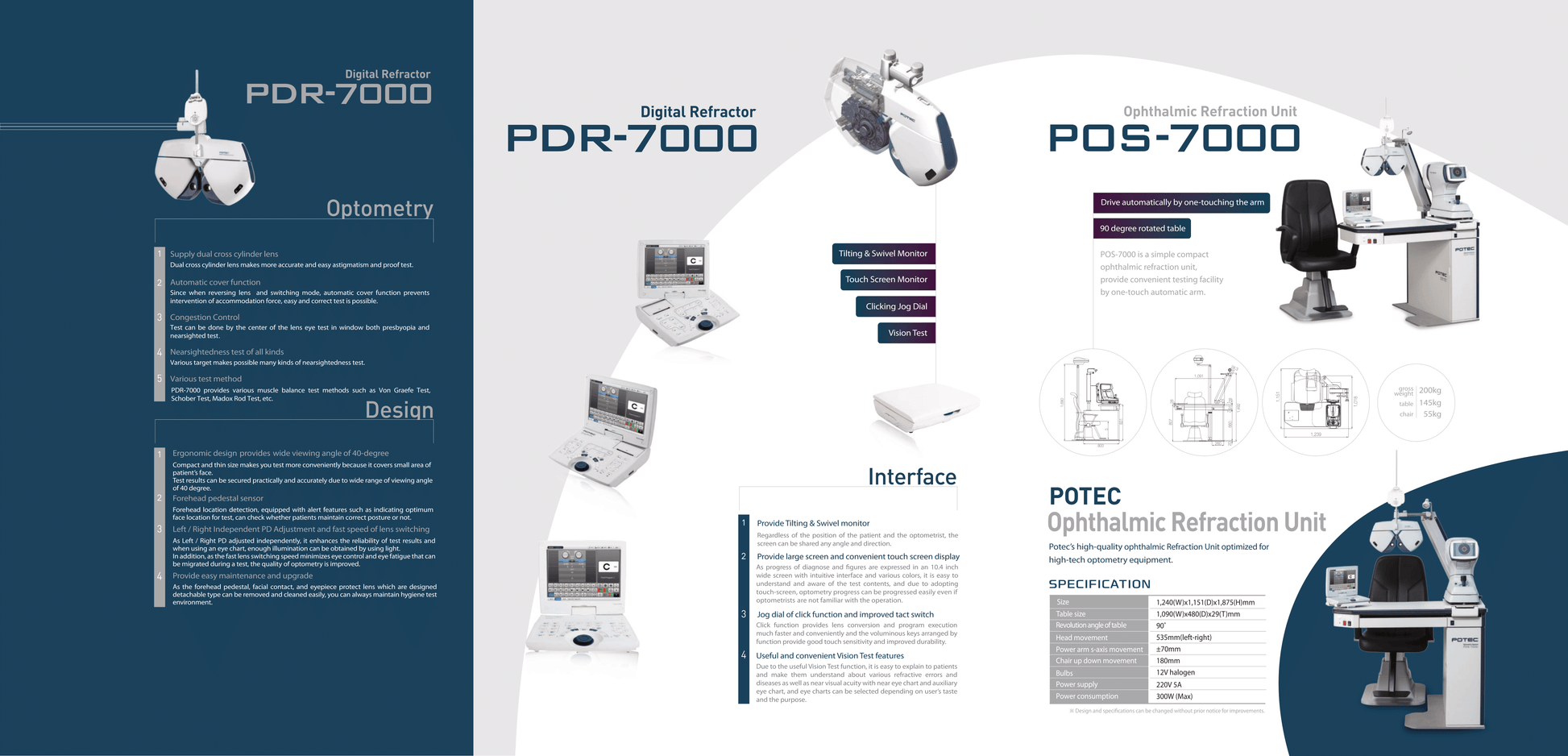

The PDR‑7000 is a compact and slim digital phoropter designed to enhance efficiency in refraction exams. It features an intuitive 10.4″ tiltable touch‑screen, tactile control buttons, and programmable exam sequences. With wireless pre‑test integration and ergonomic improvements, it delivers fast, accurate results for modern eye care workflows.
Supported eye‑chart systems include Potec's PLC series and it seamlessly integrates with auto refractometers, keratometers, and lensmeters to import data with a single tap.
Sphere Power Range
Ranging from −29.00 D to +26.75 D, with fine step adjustments in 0.12 D, 0.25 D, 0.5 D, and 1.00 D increments
Cylinder Power
0.00 to ±8.75 D, adjustable in 0.25 D to 3 D steps for precise astigmatic correction
Axis Adjustment
0° to 180° with selectable 1°, 5°, or 15° increments
Interpupillary Distance (PD)
48 mm to 80 mm adjustment range with independent left/right fine-tune
Prism power & Angle
0∆ to 20∆ adjustable in 0.1∆ steps, with 0°–360° angle variation for binocular vision testing
Dual Cross Cylinder (Astigmatism Test)
Automatic cross cylinder ±0.25 D or ±0.50 D deliver fast and accurate astigmatism refinement
Muscle Balance Tests
Includes Von Graefe, Schober, Maddox Rod tests, plus congestion control for both near and distance visual testing
Wide 40° Field of View
Enhances patient comfort and reduces restriction during testing
Forehead Alignment Sensor
Ensures accurate posture alignment and refraction consistency
Lens Delivery System
Fast stepper motors enable rapid lens transitions to minimize testing time
Interface
10.4″ color touch screen mounted on a swivel arm for ergonomic comfort
Jog dial and tactile buttons streamline manual adjustments
Built-in printer included
Dimensions & Weight
Head Unit: approx 323–389 mm (W) × 245 mm (D) × 59 mm (H), ~3.7 kg
Controller: 260 × 230 × 58 mm, ~3.1 kg
Junction Box: 210 × 190 × 70 mm, ~2.1 kg
