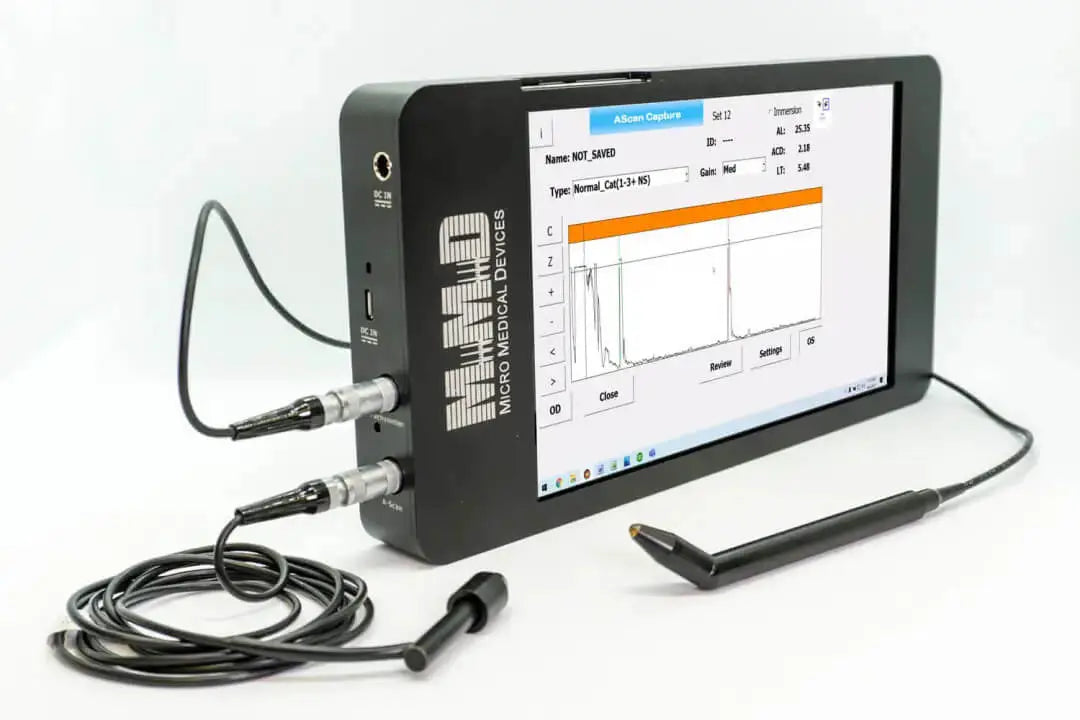

PalmScan AP2000PRO

PalmScan AP2000PRO

Excellent

The PalmScan AP2000PRO is a versatile, all-in-one ophthalmic device combining A-Scan biometry, IOL calculation, and surgical pachymetry in a single, portable unit. Designed for unparalleled accuracy and efficiency, it features advanced technologies like E-Z Tip Immersion, dense cataract penetration, and corneal waveform analysis. With Wi-Fi, Bluetooth, and USB connectivity, it seamlessly integrates with EMR systems and offers easy upgrades, including keratometry and B-scan capabilities. Ideal for cataract surgery, LASIK, and LRI procedures, the PalmScan AP2000PRO enhances productivity, ensures patient safety, and delivers precise, reliable results—all in a compact, user-friendly design.

Get Quote
  • Easy Setup
  • 24/7 VIP Support
View full details

PalmScan AP2000Pro Benefits

All-in-One Power Tool for ophthalmic diagnostics — performs biometry, pachymetry, and IOP-adjusted measurements in one portable device

Delivers ±0.05 mm accuracy for axial length with high-resolution imaging — that's surgical-level precision

Dual-mode capture: supports both contact and immersion techniques with compatibility for soft and hard shell immersion tips

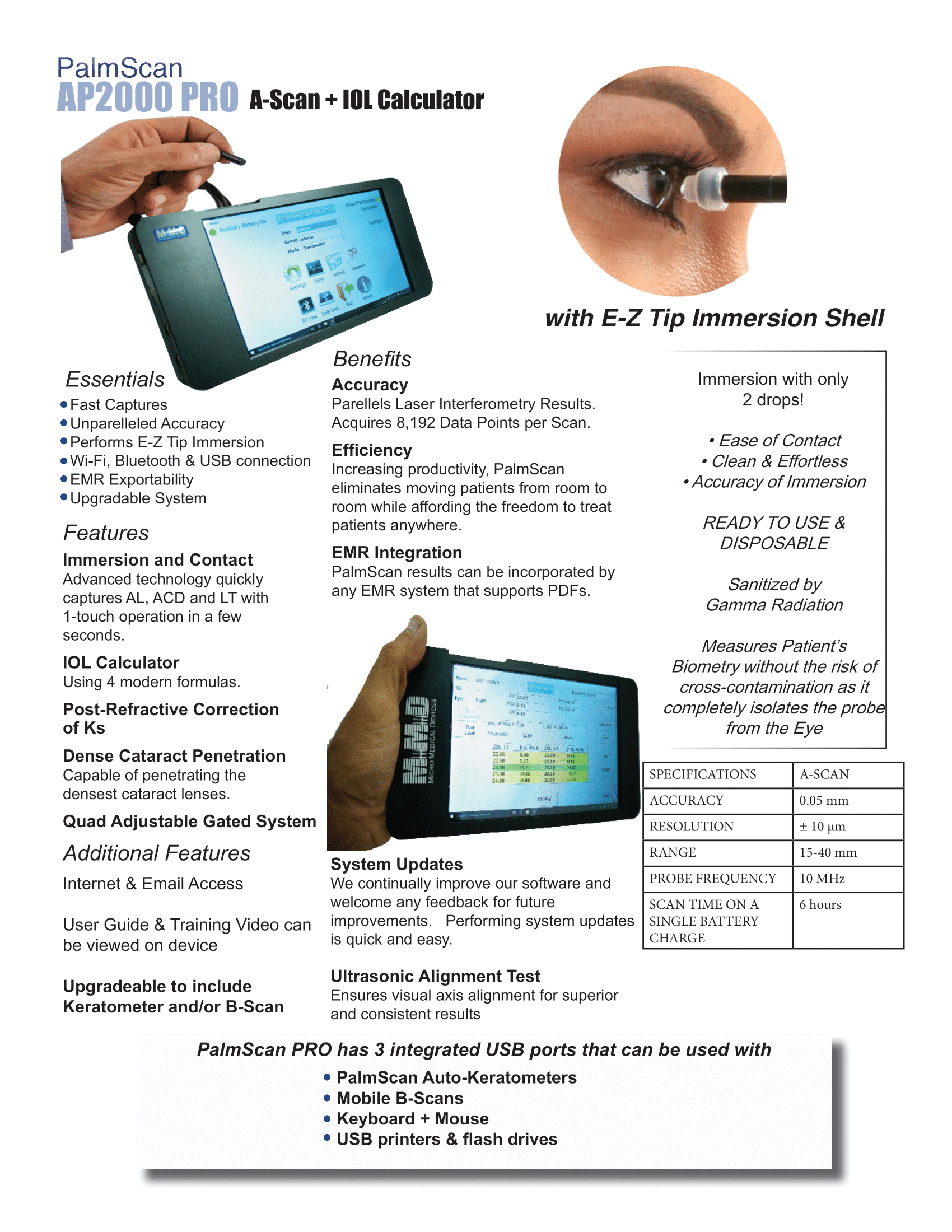

IOL Master Level Math: runs formulas like SRK-II, SRK-T, Hoffer Q, HFRQ, and includes post-LASIK keratometry corrections

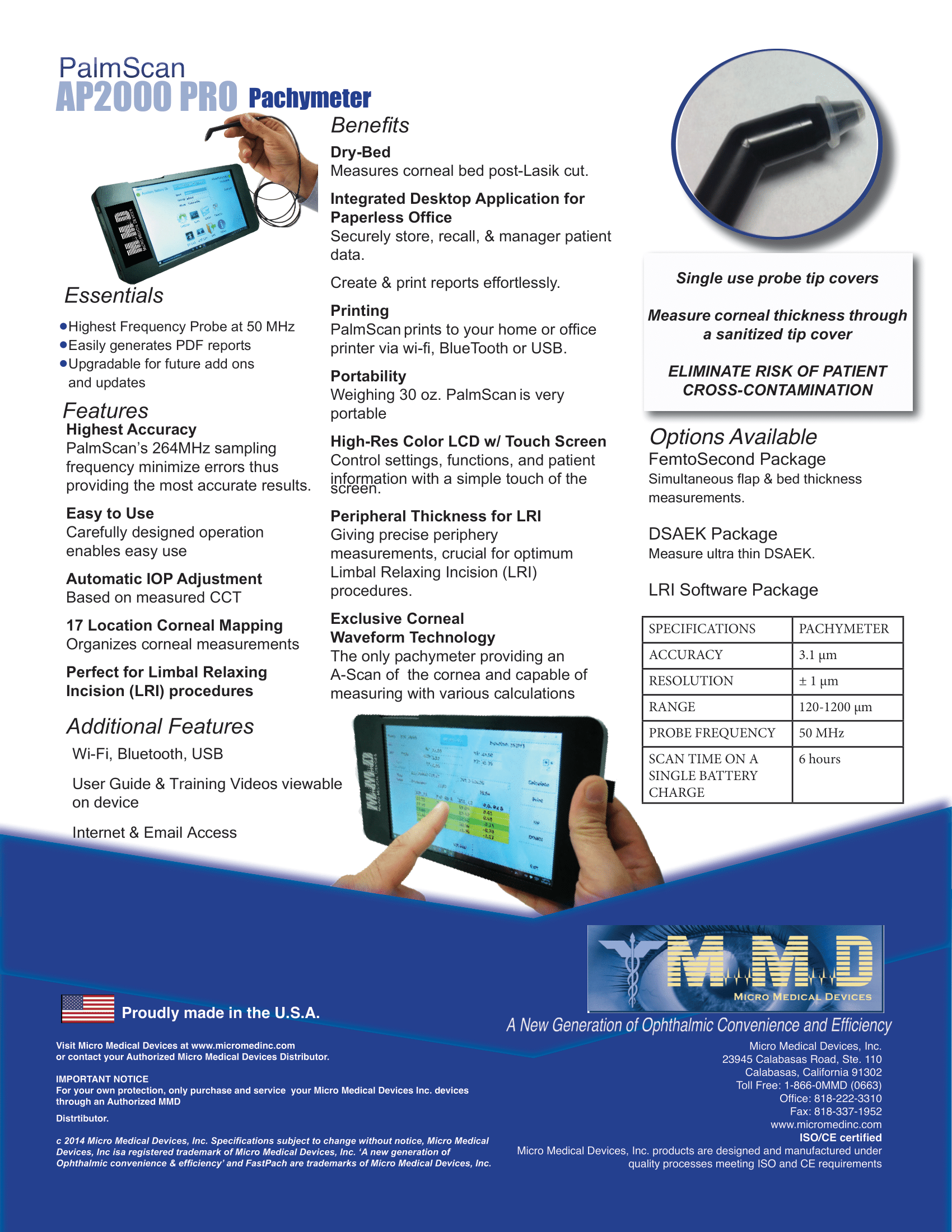

Advanced pachymeter mode with 3 µm precision, ideal for central/peripheral corneal thickness, IOP adjustments, and even DSEAK flap measurements

Fully wireless and portable with USB, Wi‑Fi, Bluetooth, and EMR integration — export PDFs, plug in a keyboard, mouse, or USB

Lightweight king — weighs just ~10 oz, perfect for on-the-go or cramped clinical spaces

6-hour runtime with an internal rechargeable battery — full clinic day, no cable dragging

Future-proofed with upgrade options like Keratometer (K2000), B-Scan, and mobile kerato modules

FDA Class II approved, low acoustic output, max safety

PalmScan AP2000Pro Key Specs


15–40 mm

~1.8–6.0 mm

~2.0–7.5 mm

±0.05 mm

±10 µm

0.01 mm

10 MHz ultrasound (with fixation light)

8,192 data points per scan

Contact & immersion (E‑Z Tip soft or hard shell compatible)

SRK II, SRK‑T, Hoffer Q, HFRQ (includes post‑LASIK corrections)


50 MHz

264 MHz

~3 µm


~10 oz

~6 hours per charge


USB, Wi-Fi, Bluetooth


EMR-compatible, supports PDF export, flash drives, printers, mouse, keyboard


Keratometer (K2000), B-scan, mobile auto-kerato


FDA Class II, low acoustic output, high safety
