NEITZ-IO
NEITZ-IO

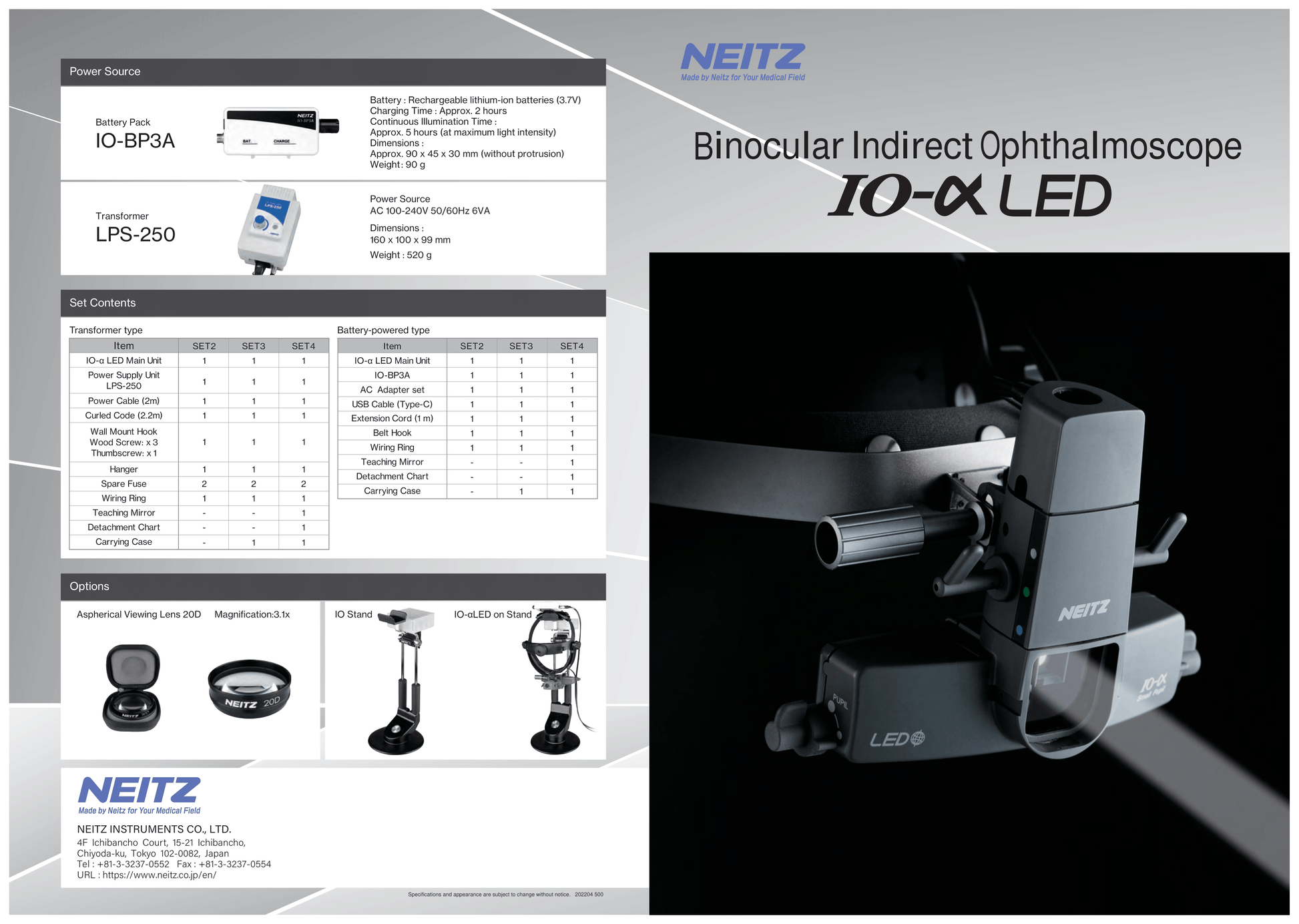

Battery : Rechargeable lithium-ion batteries (3.7V)
Charging Time : Approx. 2 hours
Continuous Illumination Time :
Approx. 5 hours (at maximum light intensity)
Dimensions :
Approx. 90 x 45 x 30 mm (without protrusion)
Weight : 90 g
Battery : Rechargeable lithium-ion batteries (3.7V)
Charging Time : Approx. 2 hours
Continuous Illumination Time :
Approx. 5 hours (at maximum light intensity)
Dimensions :
Approx. 90 x 45 x 30 mm (without protrusion)
Weight : 90 g
Optical System
stereoscopic perception, even with small pupils
wide effective visual field, enabling detailed peripheral fundus observation
Light Source
3W white LED with halogen-like color rendering—free from filament shadows and offering consistent, clear illumination
, eliminating bulb replacements
on battery (intermediate intensity)
Illumination Field
: Φ19 mm, Φ50 mm, Φ80 mm (measured at 50 cm) selectable by knob control
: ~600 lx (with UV filter at 50 cm); mid-level ~300 lx
Filters Included
UV, Red‑Free, Cobalt Blue, and optional Polarizing filter on camera version
Physical Dimensions & Comfort
: ≈ 164 × 111.5 × 58 mm (excluding headband)
: ∼480 g (camera version ∼730 g)
: 54 mm–74 mm (headband depth also adjustable)
Battery & Power
rechargeable lithium-ion battery pack (3.7 V)
: ≈ 2 hours; lighting time: up to 5 hours at max intensity
AC adapter power (LPS-250 or IO‑BP3A)
Camera Capabilities (With Camera Model)
Sony IMX291 CMOS sensor, capturing 2.13 MP (1945×1097)
HD (720p), FHD (1080p) and video recording up to 30 fps
live streaming, stills, and video capture with annotation, ideal for education and patient consen

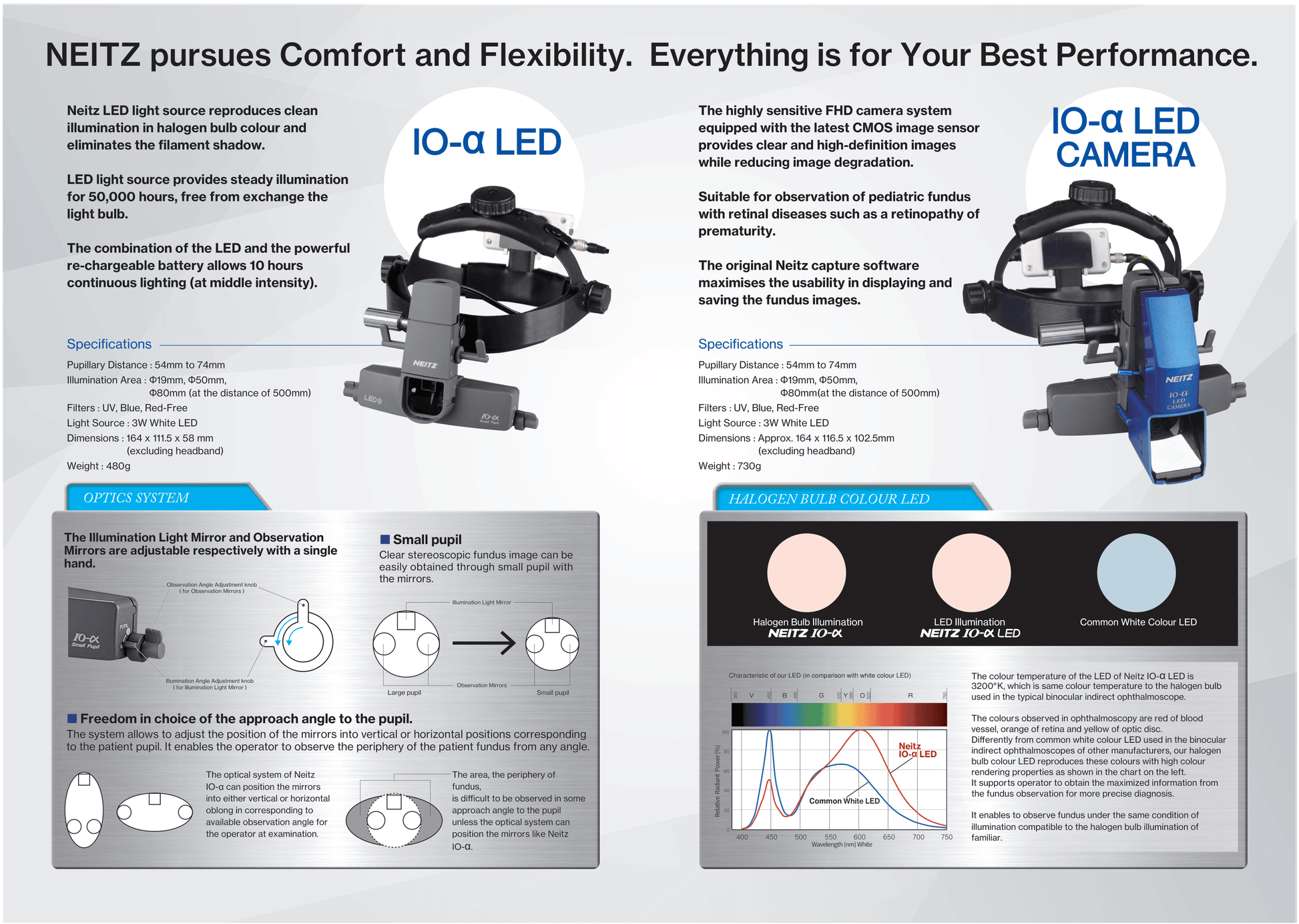

Neitz’s unique optical formula allows for independent adjustment of the illumination axis, observation axis, and spot size—delivering crisp, high-contrast stereoscopic views even through small pupils (≈2 mm). Observing peripheral retinal structures becomes easier and more precise, especially critical in vitreoretinal exams
The LED system is tuned to a 3200 K halogen-like color temperature, reproducing true retinal colors—red of vessels, orange of retina, and yellow of optic disc—without filament shadow. This delivers clinically reliable fundus visualization comparable to traditional halogen systems, but with far greater consistency The IO‑α LED handset uses a 3 W white LED rated for 50,000+ hours, eliminating bulb replacements and ensuring maintenance-free operation
Paired with a rechargeable lithium battery pack (IO‑BP3A), the device delivers up to 10 hours of illumination at medium intensity—or ~5 hours at maximum brightness—offering extended usability during busy clinics
In 2021, Neitz upgraded the battery pack to be 30% lighter and reduced charging time to just 2 hours—enhancing clinician comfort and efficiency during extended us
The handset body is lightweight (~480 g for standard, 730 g for camera-integrated version), and the headband features adjustable pupillary distance (54–74 mm) and depth settings to fit various head shapes with ease
Combined with smooth single-hand mirror adjustment, this design supports ergonomic clinical workflows, permitting seamless angle changes without interrupting observation
