IDRA Diagnostic

IDRA Diagnostic

Excellent

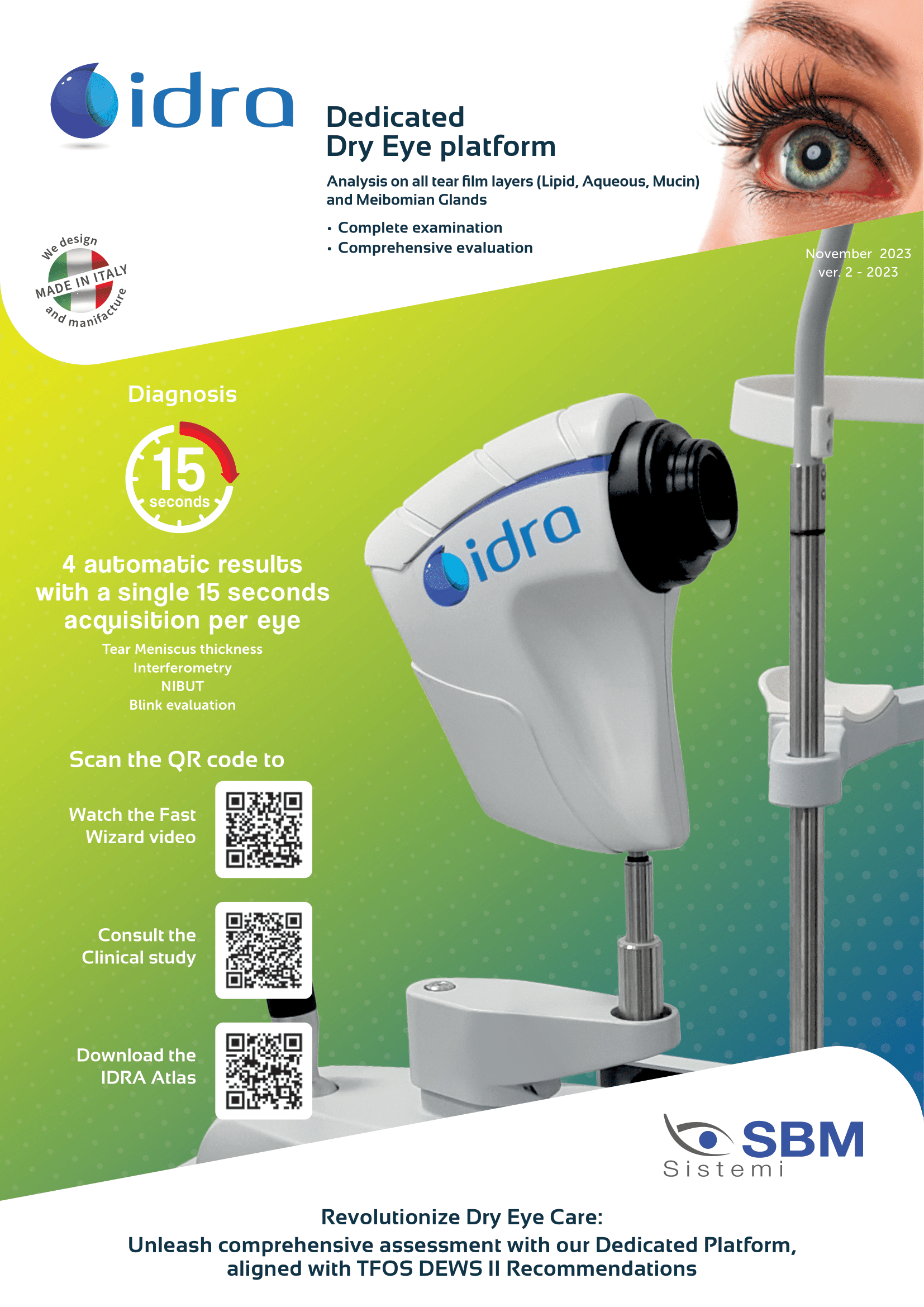

IDRA Diagnostic Platform by SBM Sistemi is a cutting-edge, dedicated dry eye analysis system that revolutionizes ocular surface evaluation. Offering a comprehensive suite of tests, IDRA provides automatic, non-invasive assessments of all tear film layers (lipid, aqueous, mucin) and meibomian gland functionality in just 15 seconds per eye. Key features include automatic NIBUT (Non-Invasive Break-Up Time), interferometry for lipid layer analysis, tear meniscus height measurement, and 3D meibography for detailed gland imaging. Aligned with TFOS DEWS II recommendations, IDRA delivers precise, objective results, enabling targeted treatments for conditions like evaporative dry eye and aqueous deficiency. With user-friendly software, customizable reports, and patient follow-up apps, IDRA enhances diagnostic accuracy, patient communication, and treatment outcomes, making it an essential tool for modern eye care practices.

Get Quote
  • Easy Setup
  • 24/7 VIP Support
View full details

IDRA Ocular Surface Analyser – Product Overview

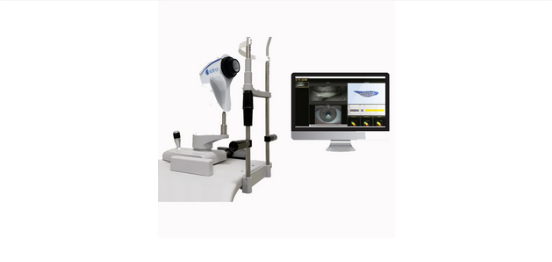

The IDRA is a fully automated, non-invasive diagnostic platform for dry eye evaluation. It performs a comprehensive assessment of the tear film and meibomian gland function in as little as 15 seconds per eye. This makes it ideal for modern eye care practices integrating dry eye clinics into their service offerings.

The system analyzes all layers of the tear film—lipid, aqueous, mucin—and provides 3D meibography, blink rate data, tear meniscus height, and pupillometry metrics, aligning with TFOS DEWS II recommendations.

Key Features & Tech Specs

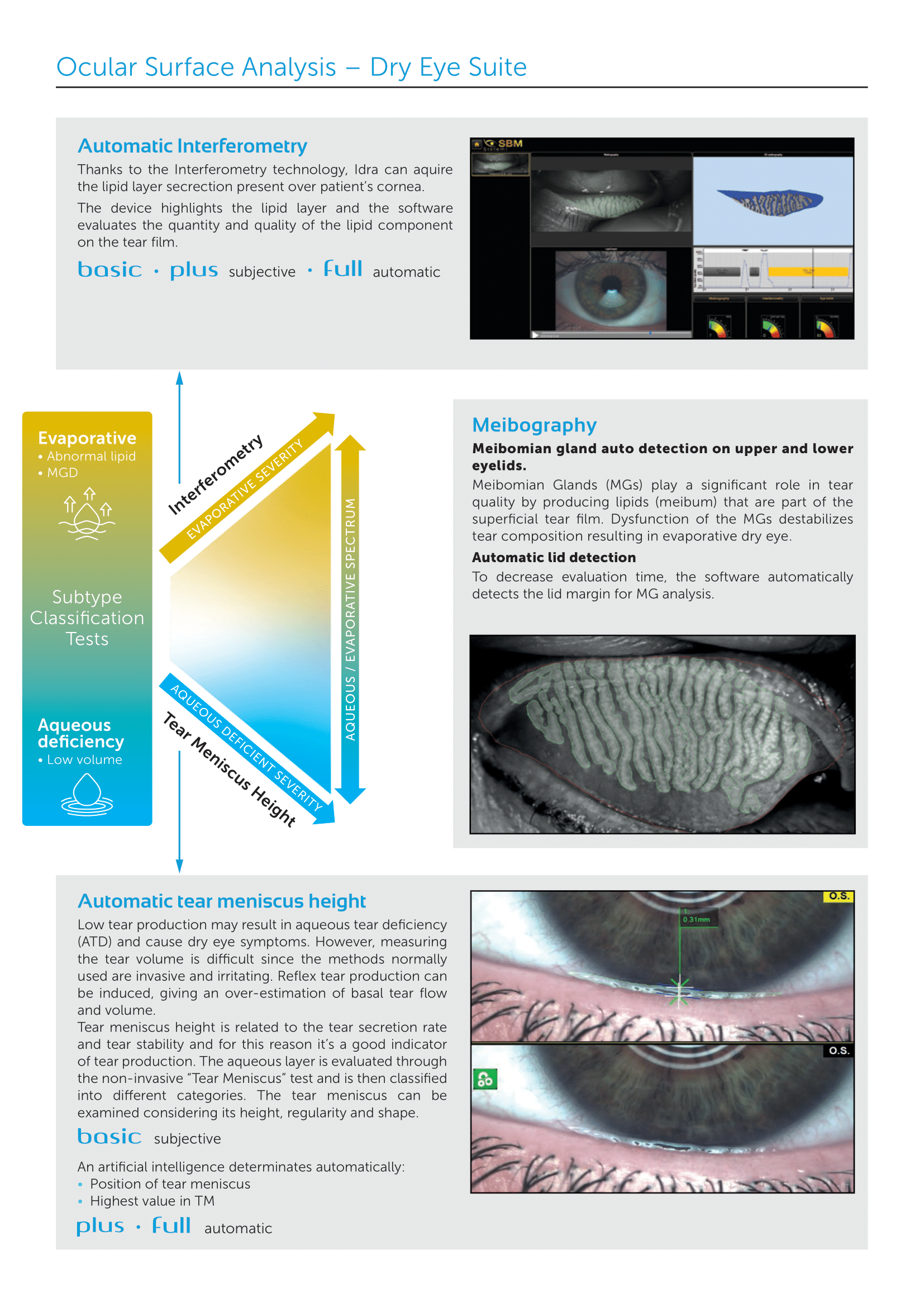

Auto Interferometry

Automatically measures lipid layer thickness per blink

NIBUT Analysis

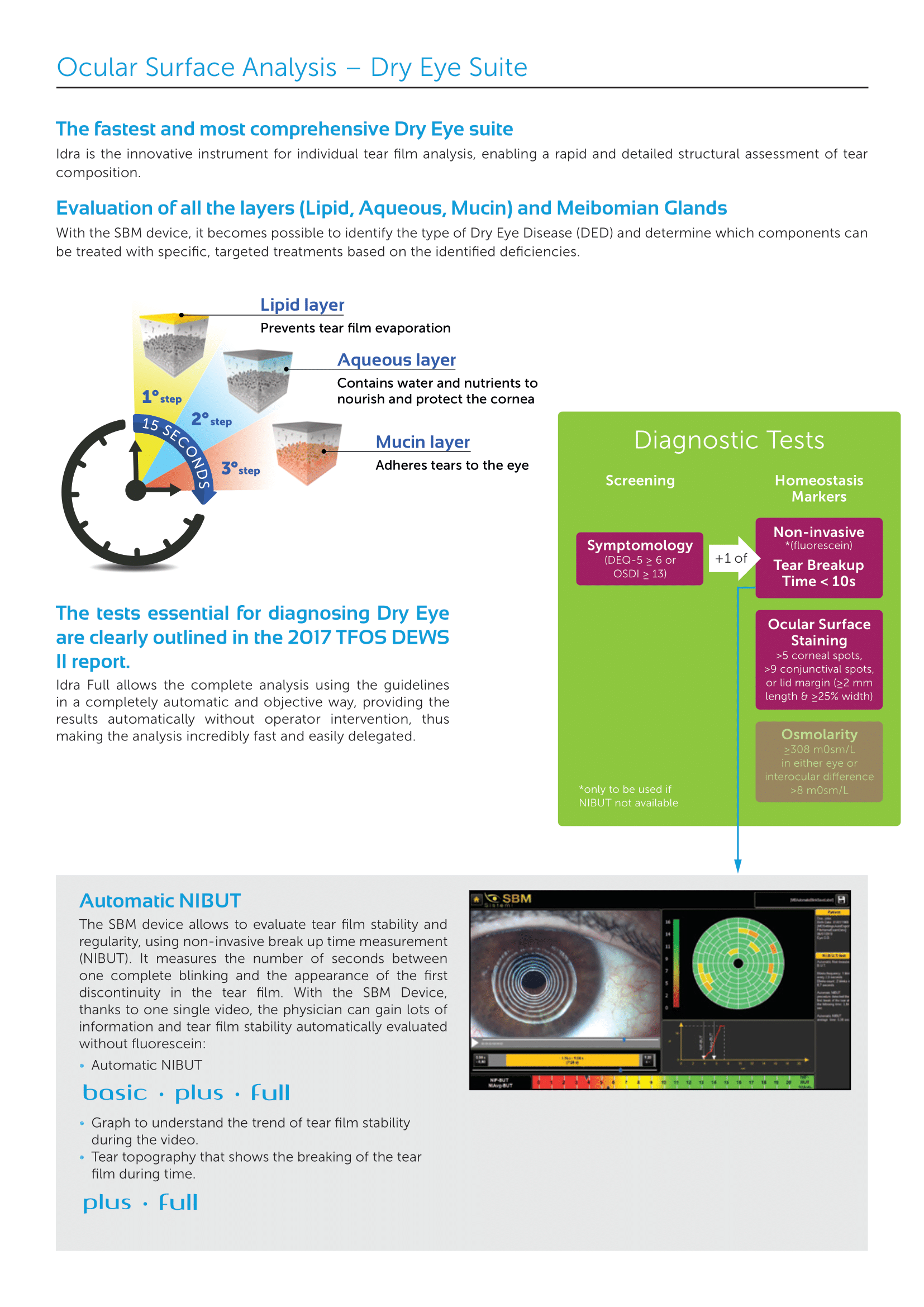

Generates first and average Non-Invasive Break-Up Time using placido-disc ring patterns with stability maps

Tear Meniscus Evaluation

Captures up to five measurements of tear meniscus height, shape, and regularity

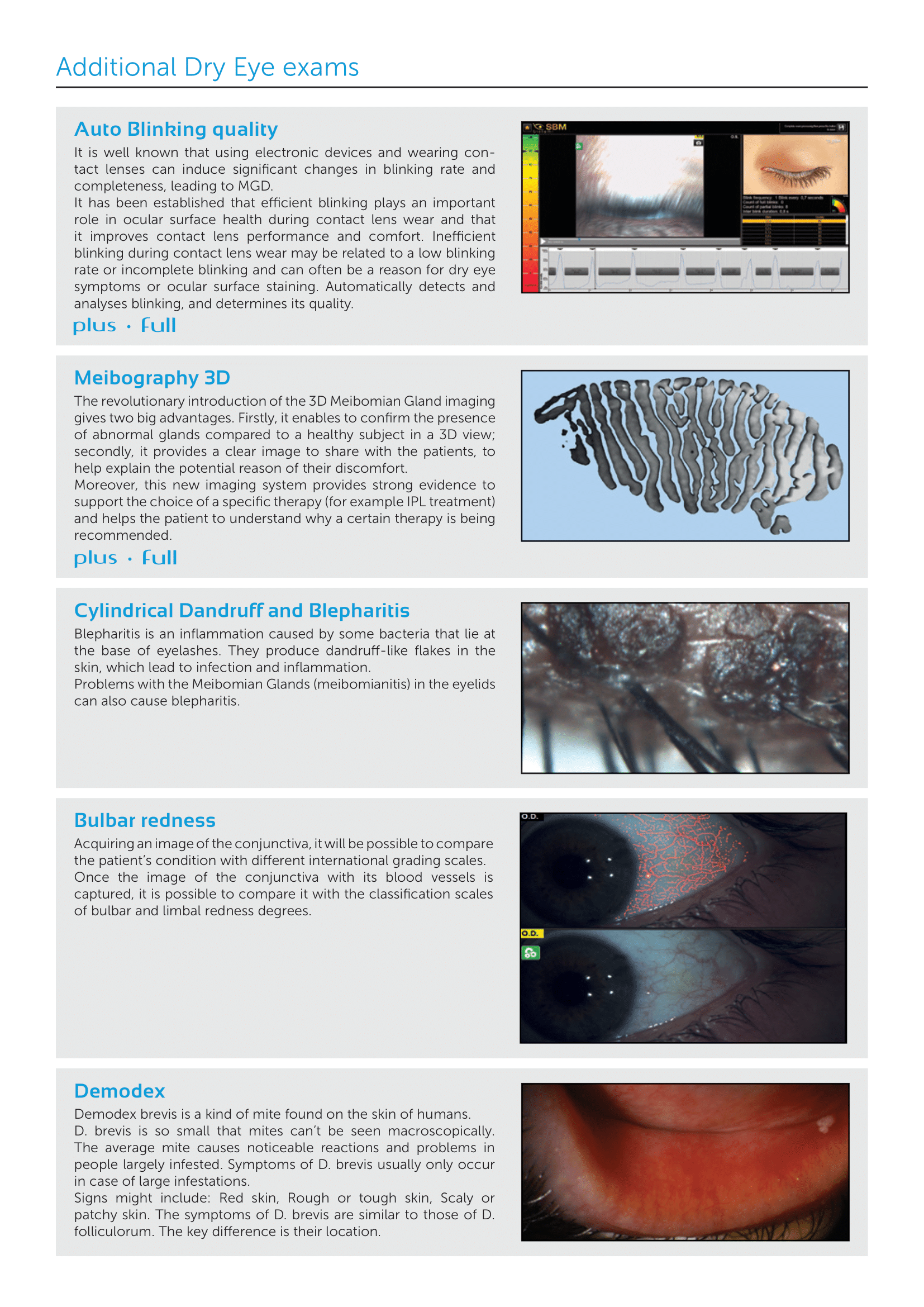

Meibography / 3D Gland Imaging

Infrared imaging of upper and lower meibomian glands with automated gland dropout quantification and structural visualization

Blink Detection

Measures blink rate and completeness, assessing blink behavior related to tear film stability

Blepharitis & Demodex Detection

Analyzes presence of eyelid inflammation, dandruff, and parasitic infestation

Ocular Redness Classification

Quantifies bulbar and limbal vascular congestion using imaging and grading scales

Pupillometry

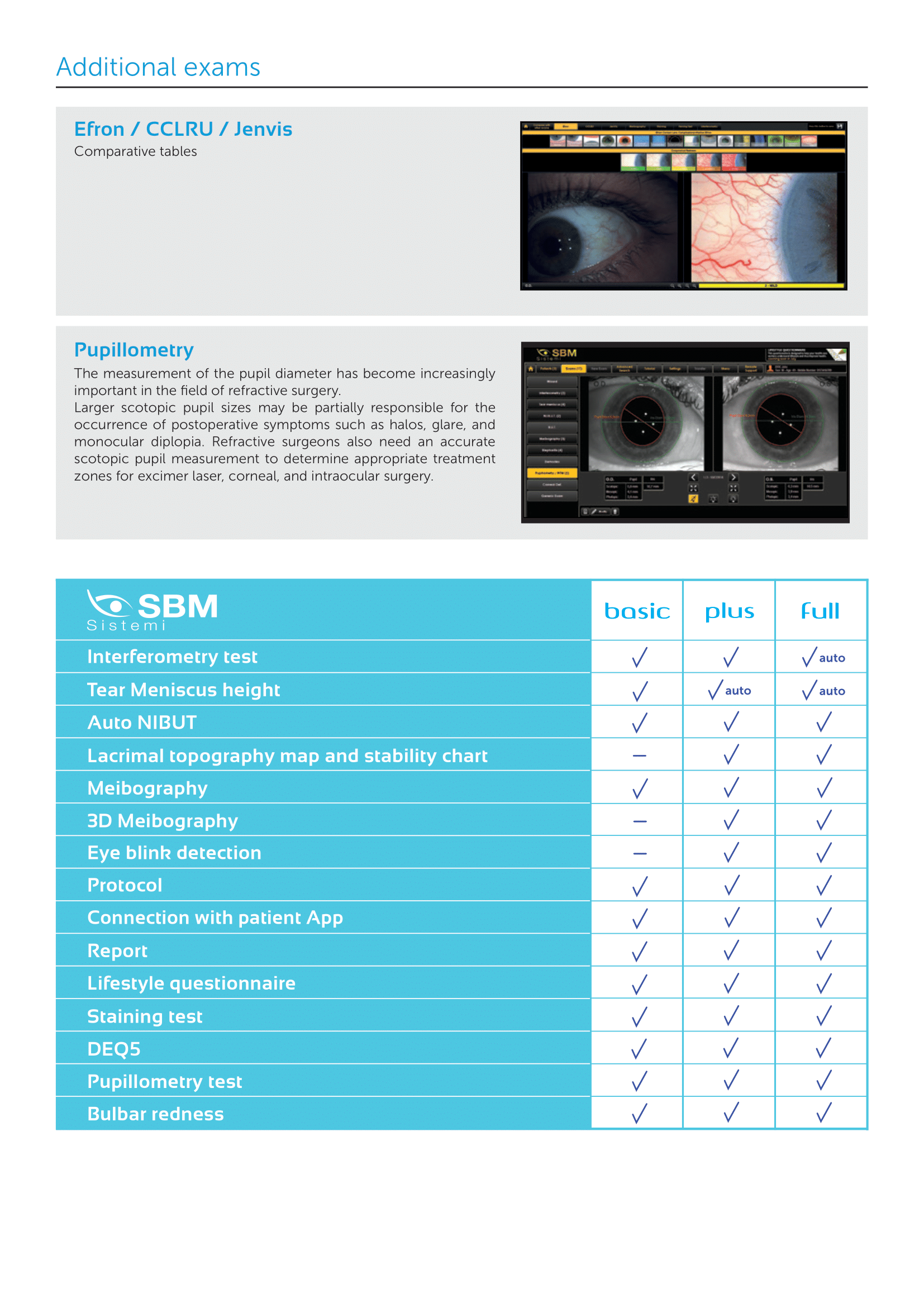

Measures pupil size and light response in scotopic, mesopic, and photopic conditions

White-to-White Measurement

Computes corneal diameter from limbus to limbus for ocular surface mapping

Anterior Segment Imaging

Provides real-time visualization of eyelids, conjunctiva, and tear film dynamics

Customizable Test Protocols

Clinics can pre-set test sequences for efficient workflows and standardized patient evaluations

Test Speed

Full dry eye assessment of both eyes in approximately 30 seconds

Device Integration

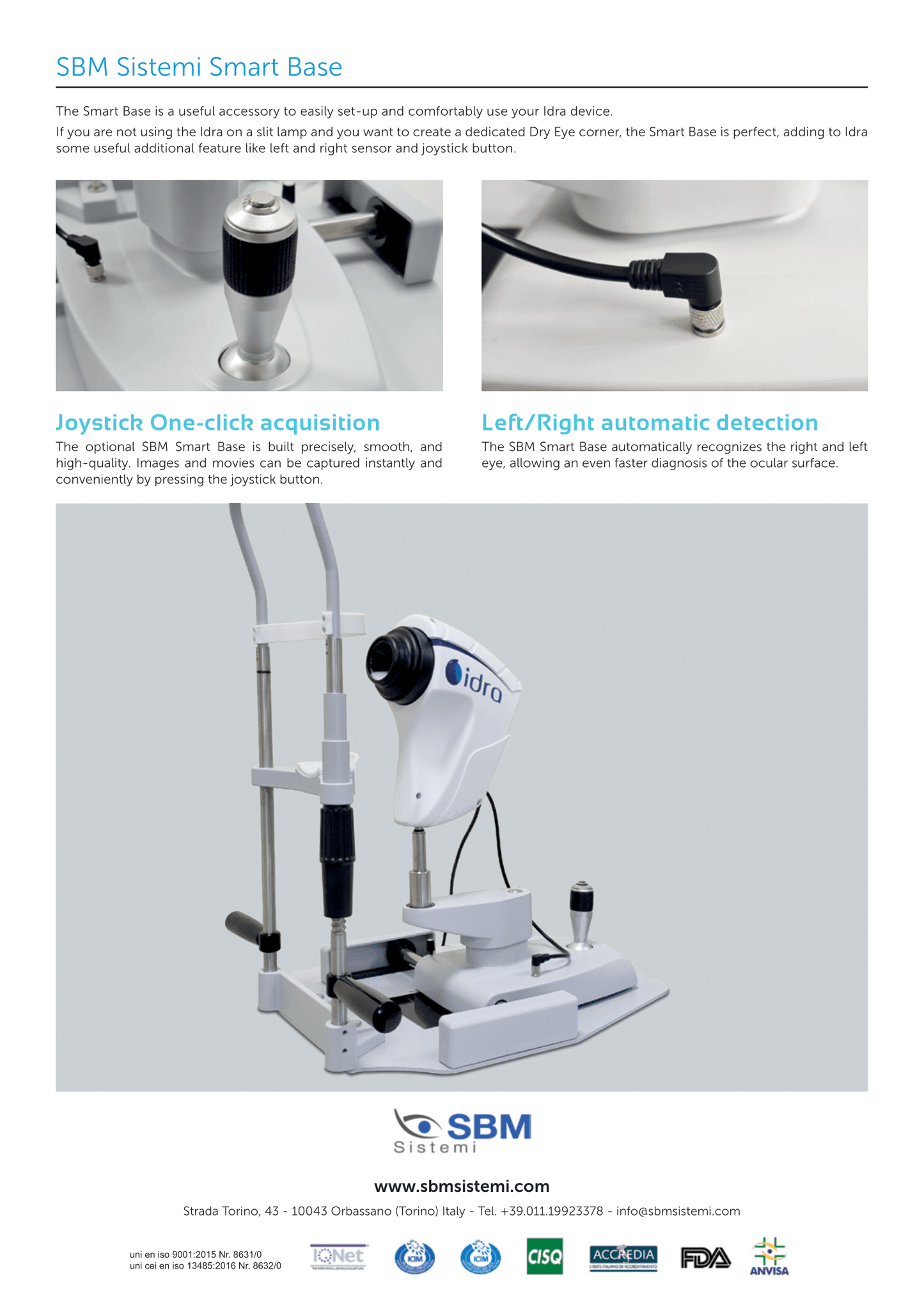

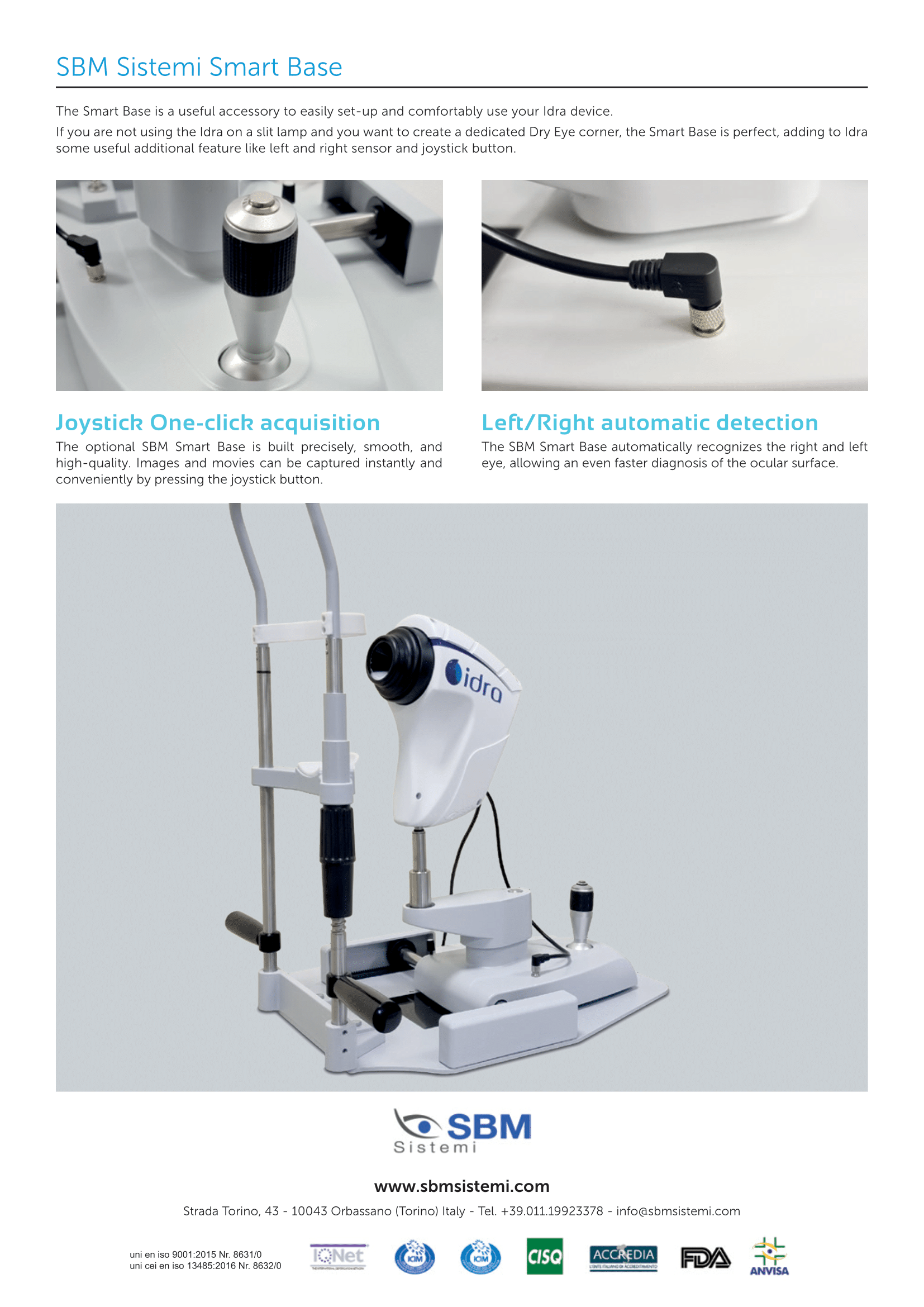

Mounts directly to slit lamp or biomicroscope for seamless use during existing workflows

Reporting & Software

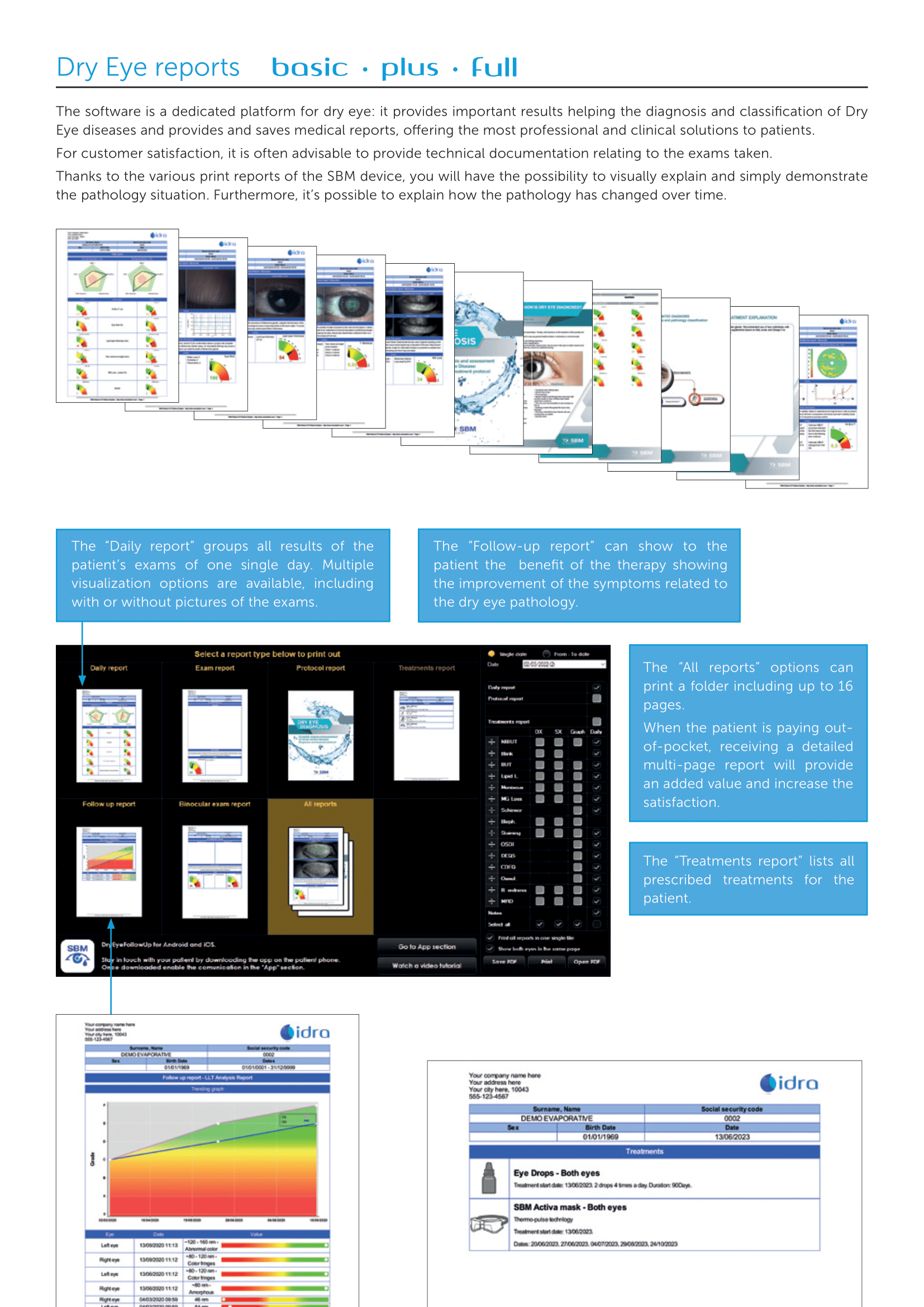

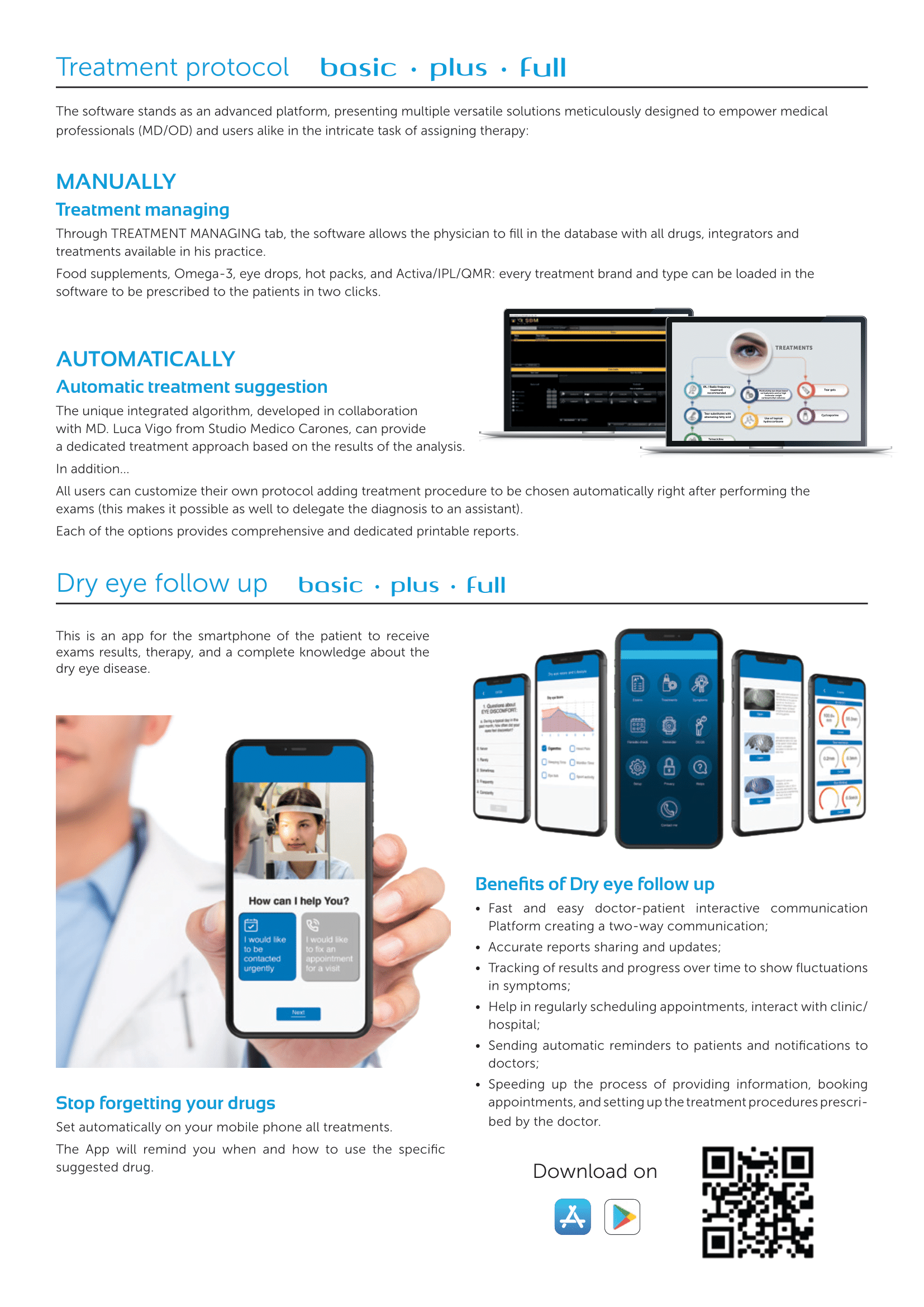

User-friendly interface with onboard software that generates traffic-light style diagnostic reports and customizable patient summaries

Patient Communication Tools

Includes 3D visualizations for patient education and treatment explanation

Research Validation

Parameters measured (e.g. aNIBUT and lipid layer thickness) are validated in peer-reviewed studies and correlate strongly with established platforms like Keratograph 5M

Standards Alignment

Test suite designed in accordance with TFOS DEWS II diagnostic criteria
