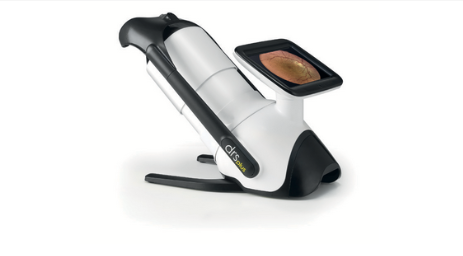

iCare DRSplus

iCare DRSplus

Excellent

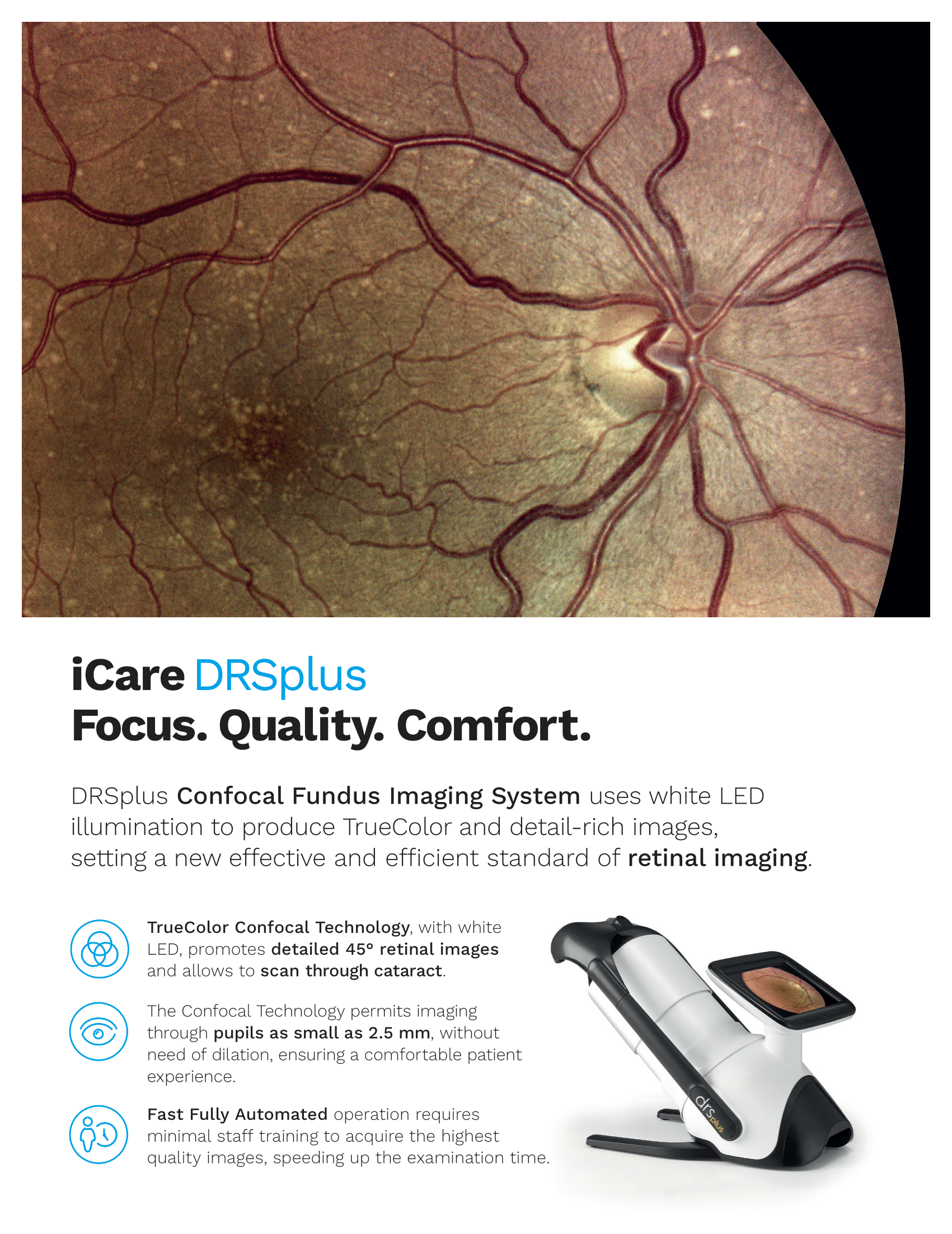

The iCare DRSplus is an advanced confocal fundus imaging system designed to deliver high-quality, TrueColor retinal images with exceptional detail and clarity. Utilizing white LED illumination, it provides 45° field-of-view images and can capture through small pupils (as small as 2.5 mm) without the need for dilation, ensuring a comfortable patient experience. Key features include automated operation for minimal staff training, multiple imaging modalities (TrueColor, Red-free, Blue, Red, External Eye, Stereo View, and Mosaic), and confocal technology for imaging through cataracts. The DRSplus also offers remote viewing and remote exam capabilities, enhancing workflow efficiency. With its compact design, user-friendly interface, and high-resolution imaging, the DRSplus is ideal for diagnosing conditions like diabetic retinopathy, glaucoma, and macular degeneration, while improving patient comfort and clinic productivity.

Get Quote
  • Easy Setup
  • 24/7 VIP Support
View full details

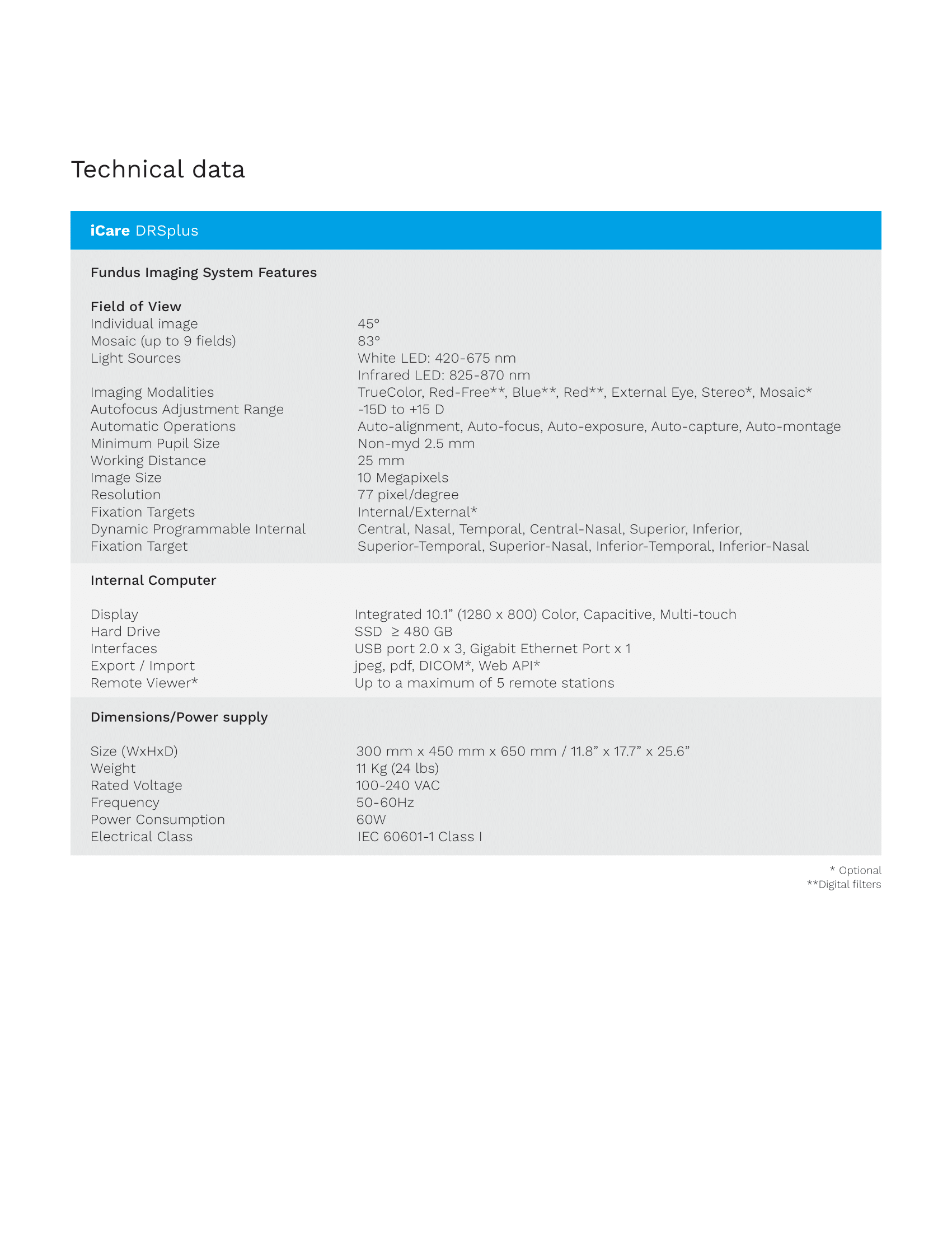

Tech Specifications Summary

Field of View: Single image 45° × 40°; Mosaic up to 9 fields forming 83° × 78° panorama

Minimum Pupil Diameter: 2.5 mm

Working Distance: Approximately 25 mm

Image Resolution: ~10 megapixels; ~77 pixels per degree

Focus Range: −15 D to +15 D

Fixation Targets: Internal and external; customizable positions (central, nasal, temporal, etc.)

Physical Dimensions: ~300 × 450 × 650 mm; Weight ~11 kg

Power Requirements: 100–240 V AC, 50/60 Hz, ~60 W; IEC 60601-1 Class I certified device

iCare DRSplus – Product Overview

TrueColor Confocal Fundus Imaging System built for fast, automated, and dilation-free retinal imaging even through media opacities and small pupils down to 2.5 mm Core Imaging Technology & Modalities

TrueColor Confocal Technology combining white‑light LED and confocal optics delivers ultra‑sharp retinal images with vibrant, natural colors and high contrast

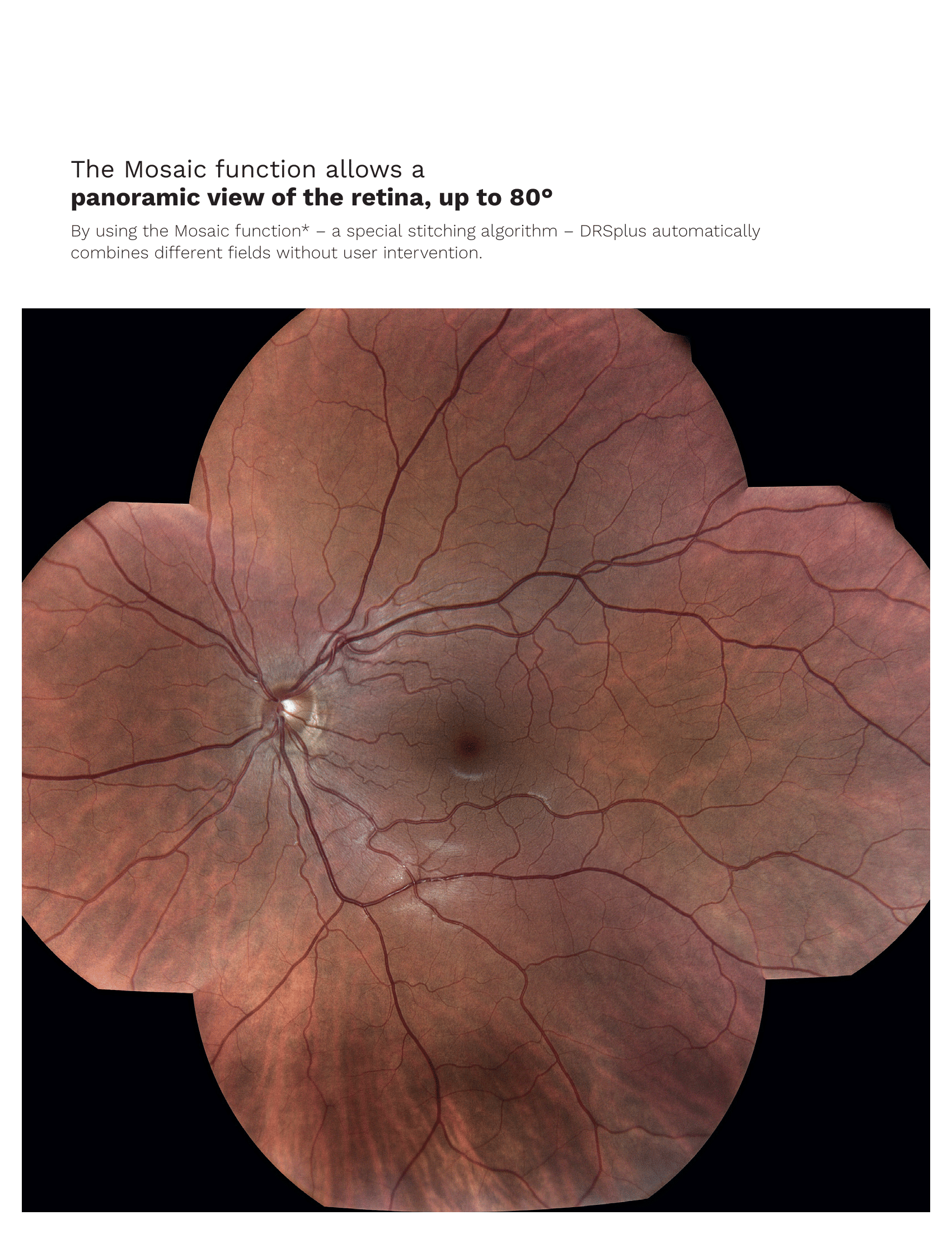

Multiple imaging modes supported including TrueColor, Red‑free, Infrared, Blue, Red, External Eye, Stereo View, and Mosaic panoramic imaging up to 80° full-field view

Fully automated workflow includes auto-alignment, auto-focus, auto-exposure, auto-capture, and optional auto-montage/mosaic capability


Image acquisition takes ~16 seconds per eye and ~30 seconds for both eyes, improving clinic throughput and patient comfort Permits imaging without dilation; works through pupils as small as 2.5 mm, eliminating the need for dark rooms or mydriatic drops

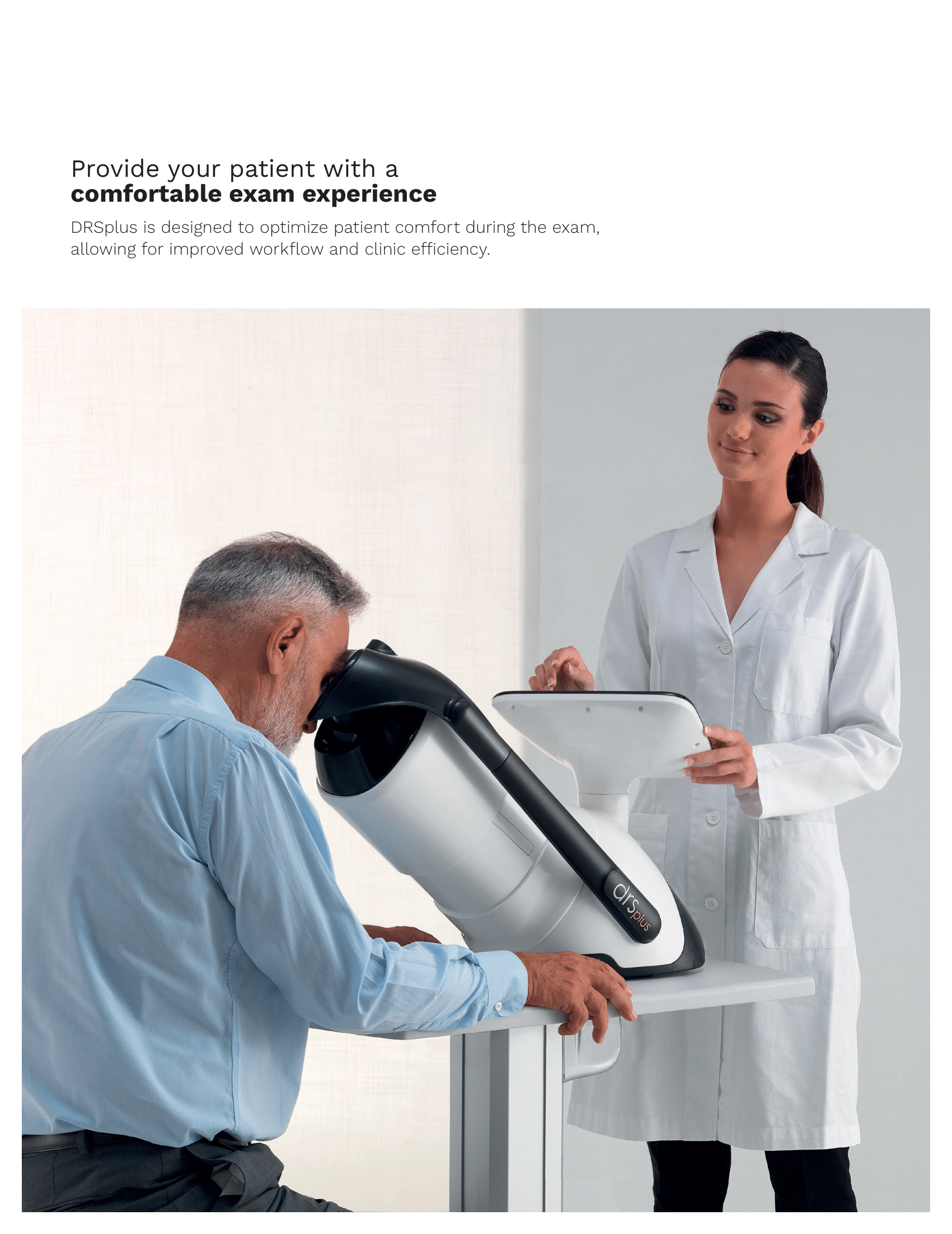

Unique forehead-only rest design enhances comfort by removing the need for chin support, simplifying patient positioning

Integrated 10.1″ capacitive touchscreen display with SSD storage (≥ 480 GB), USB, and Gigabit Ethernet support for image export (JPEG, PDF, DICOM, Web API)

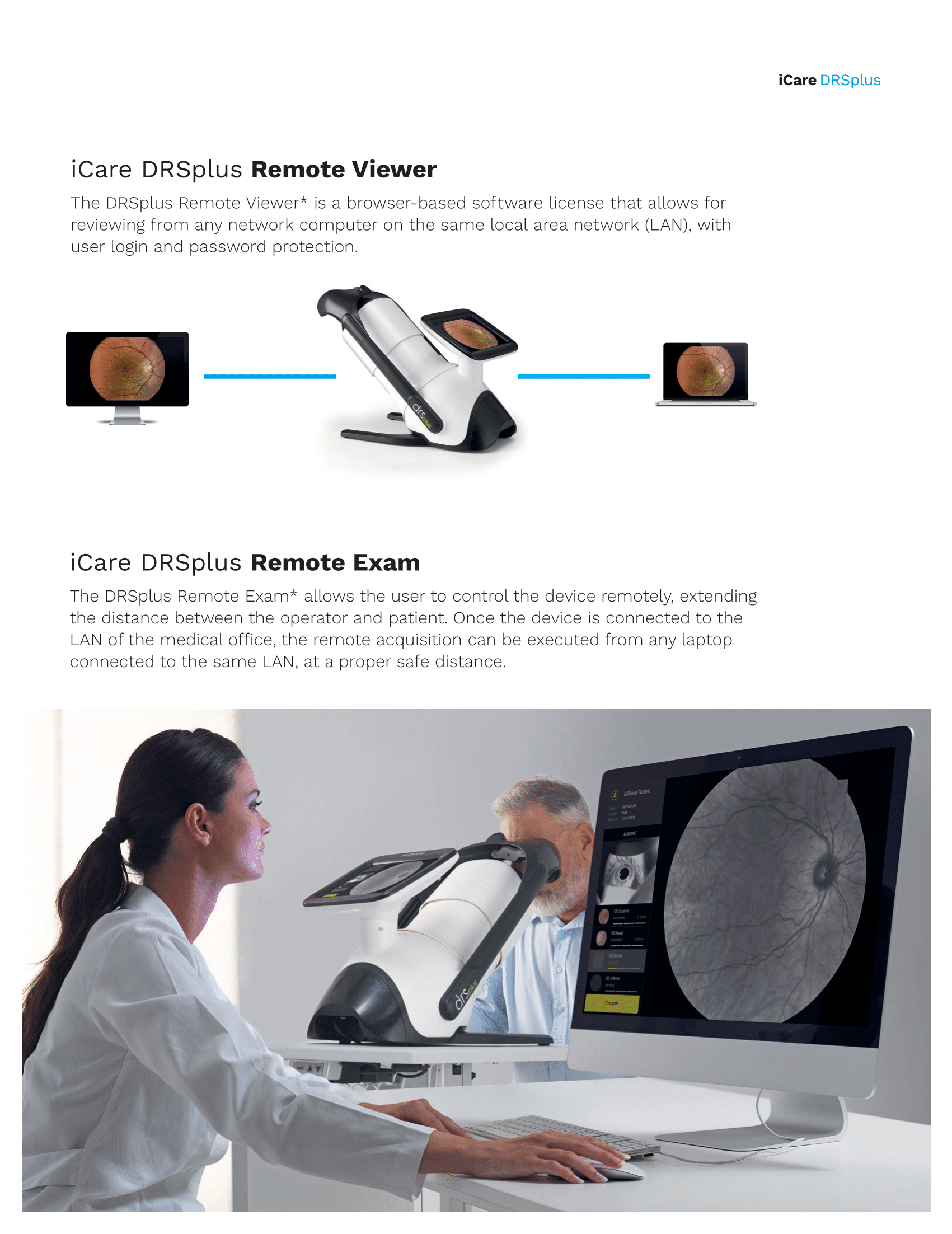

Remote Viewer functionality supports review and capture from up to five workstations on the same LAN

Remote Exam mode enables operator to execute exams from a safe distance—ideal for social distancing or remote workflows
