CV Series

CV Series

Excellent

The CV Series Chart Panels by Rodenstock Instruments offer a versatile and advanced solution for comprehensive visual acuity and vision testing. Designed to integrate seamlessly with automated phoropters like the Phoromat 2000, these panels provide a wide range of tests, including visual acuity, astigmatism, contrast sensitivity, color vision, and binocular vision assessments. With options for polarising displays (CV 800P and CV 1000P) and standard chart panels (CV 600 and CV 900), the CV Series ensures precise image separation and a variety of optotypes for accurate diagnostics. Features like WiFi/Bluetooth connectivity, multilingual interfaces, and infrared remote control enhance usability, making it an ideal choice for modern optometry practices.

Get Quote
  • Easy Setup
  • 24/7 VIP Support
View full details

Rodenstock CV Series Chart Panel – Product Overview


The CV Series delivers premium chart panels for advanced vision testing. Designed to integrate seamlessly with automated phoropters like the Phoromat 2000, it supports a full range of exams from visual acuity to color vision and binocular assessments. Polarized versions provide true binocular separation for stereopsis testing without ghosting. Its sleek, compact design and quick wireless connectivity make it ideal for modern optometry practices.

Key Specifications & Features

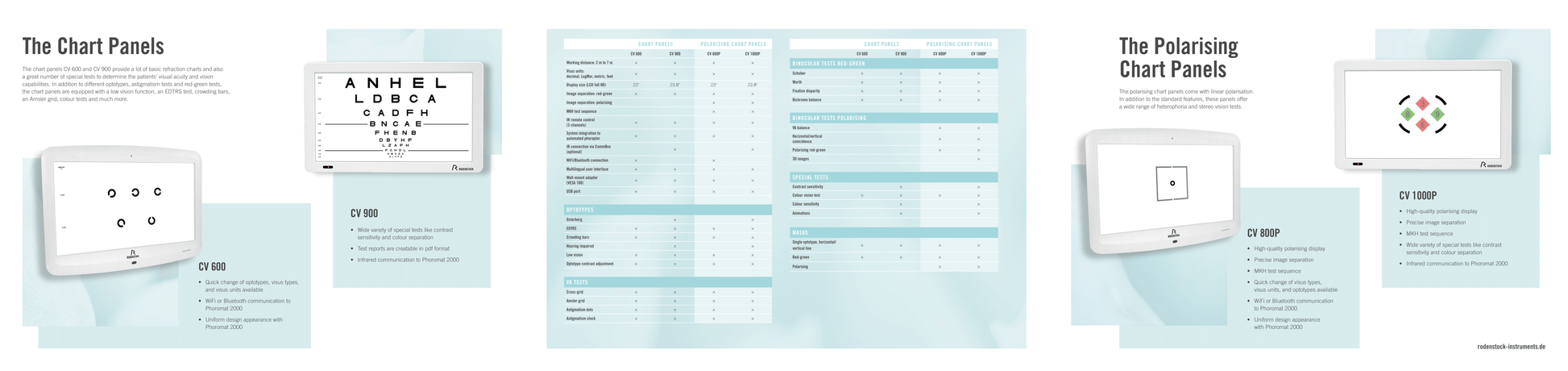

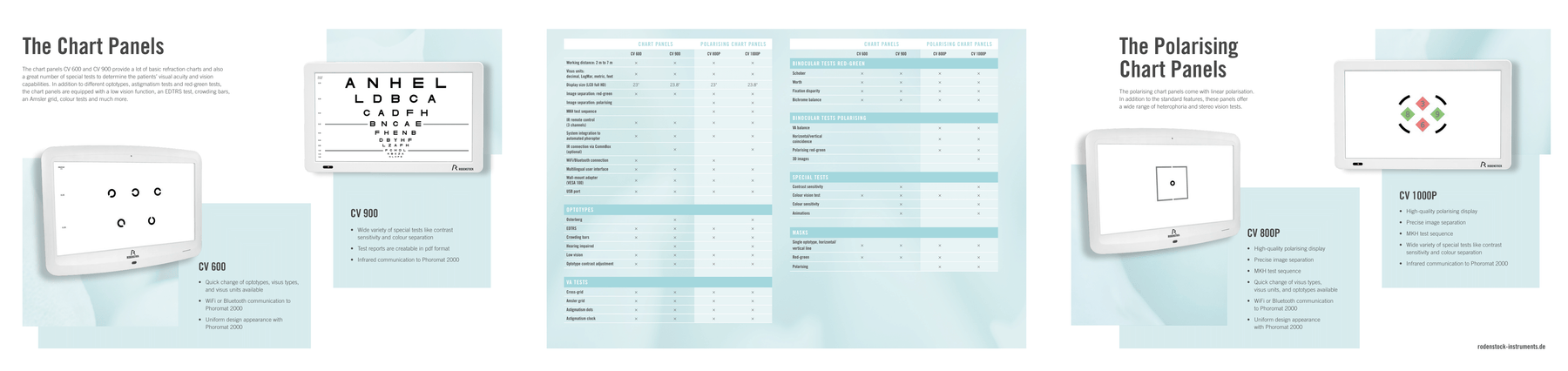

Model Variants

CV 600 and CV 900 offer standard red‑green testing

CV 700P, CV 800P, CV 1000P feature linear or circular polarized displays for stereo and heterophoria Screen Size & Display

23″ or 24″ Full HD (1920 × 1080), IPS LED-backlit panels with matte finish

Borderless, non-reflective design, high contrast and brightness calibration

Connectivity

Supports WiFi or Bluetooth connection to Phoromat 2000

Infrared remote control via CommBox or direct IR for compatible models

Control via iOS app “Chart_MAXX” (live chart preview and remote control

Testing Capability

Over 60 dynamic, interactive tests including standard visual acuity, astigmatism, color tests, contrast sensitivity, binocular and stereo tests

Fully programmable test sequences with randomization and low vision/child modes

Polarized Testing ( Pola Models)

Offers 100% separation stereo tests using linear or circular polarization

Supports MKH sequences and other stereo protocols with zero ghost image

Driver’s License Testing

Automatic testing flow for Group 1 & Group 2 license exams

Includes visual acuity, contrast sensitivity, twilight vision, glare recovery and number plate test

Results downloadable as PDF or printed, fully compliant with EU standards

Mounting Options & Power

Wall or table mounting using VESA brackets

Power input standard 100–240 V AC; low standby consumption (< 0.5 W)

Dimensions & Weight

Panel weight between 3.8 kg and 5.7 kg depending on model

Dimensions approx 58 cm × 30–55 mm depth × 37–45 cm height
Built‑in stereo vision testing and adaptive modes for children and low‑vision patients enhance usability and test accuracy across all patient groups.Customizable Test Sequences

Allows flexible selection and sequencing of optotypes and tests, which can be saved and recalled for repeat patient exams. Supports randomized optotypes to reduce memorization bias.

Remote Control & IR Console Compatible

Operated via infrared remote or wireless remote console (optional), keeping the exam efficient and hygienic without touching the device screen.

Seamless Report Sharing & Remote Assistance

Generates PDF exam reports including visual acuity, contrast sensitivity, and glare testing. These can be automatically sent via Bluetooth or WiFi to Android or Windows devices. Software updates and technical support can also be accessed remotely.

Low Energy & Eco‑Friendly Design

Engineered for energy efficiency and sustainability, the unit features recyclable packaging and adherence to environmental design standards.
