Alino

Alino

Excellent

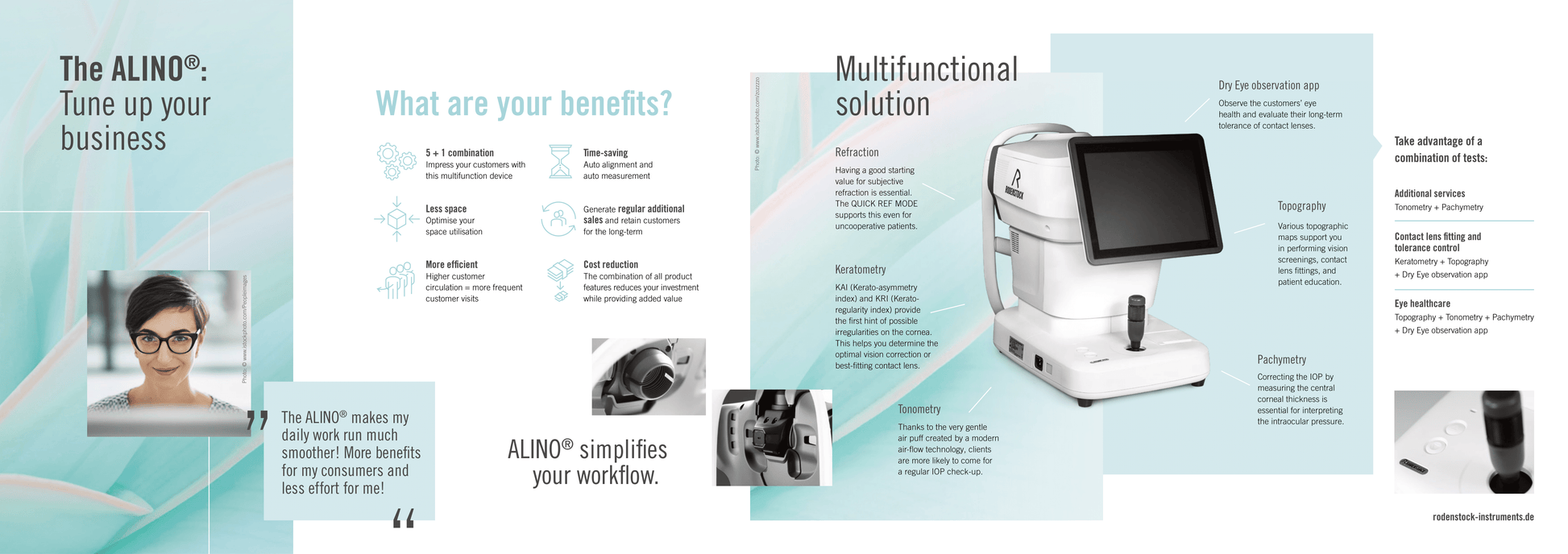

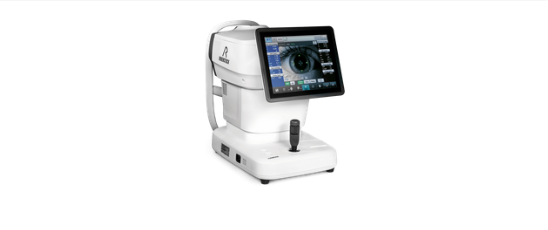

The ALINO Multifunction Unit by Rodenstock Instruments is a versatile, all-in-one diagnostic device designed to streamline eye examinations with multiple functionalities in a single unit. It combines autorefraction, keratometry, non-contact tonometry (NCT), pachymetry, topography, and pupillometry, offering a comprehensive solution for modern eye care practices. Key features include dry eye observation with tear stability analysis, high-resolution imaging, and an integrated thermal printer for quick results. With multiple data output options (USB, LAN, WLAN) and user-friendly operation, the ALINO enhances workflow efficiency, reduces patient examination time, and provides detailed, accurate diagnostics for conditions like dry eye, corneal irregularities, and glaucoma. Ideal for optometrists and ophthalmologists seeking precision and convenience.

Get Quote
  • Easy Setup
  • 24/7 VIP Support
View full details

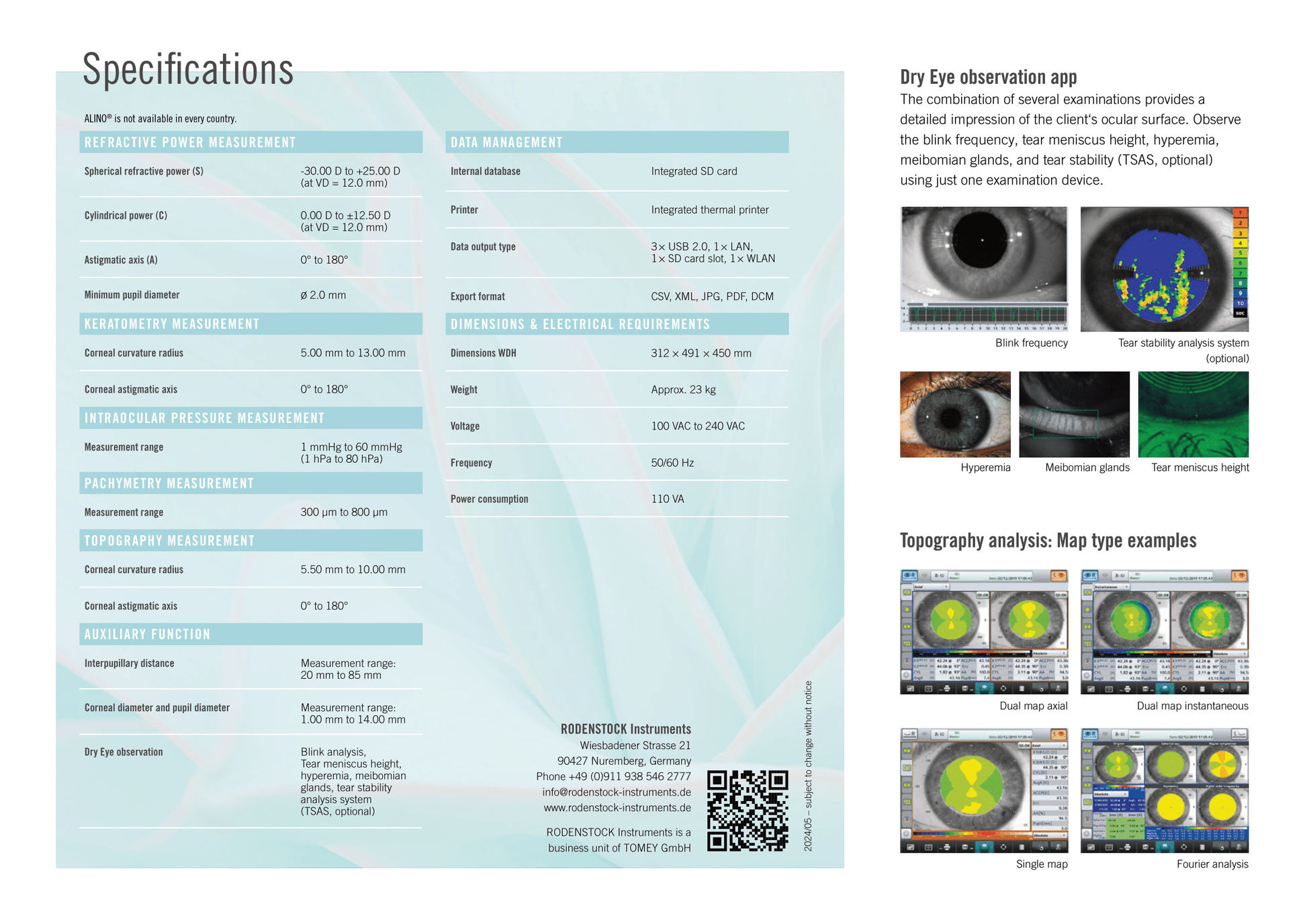

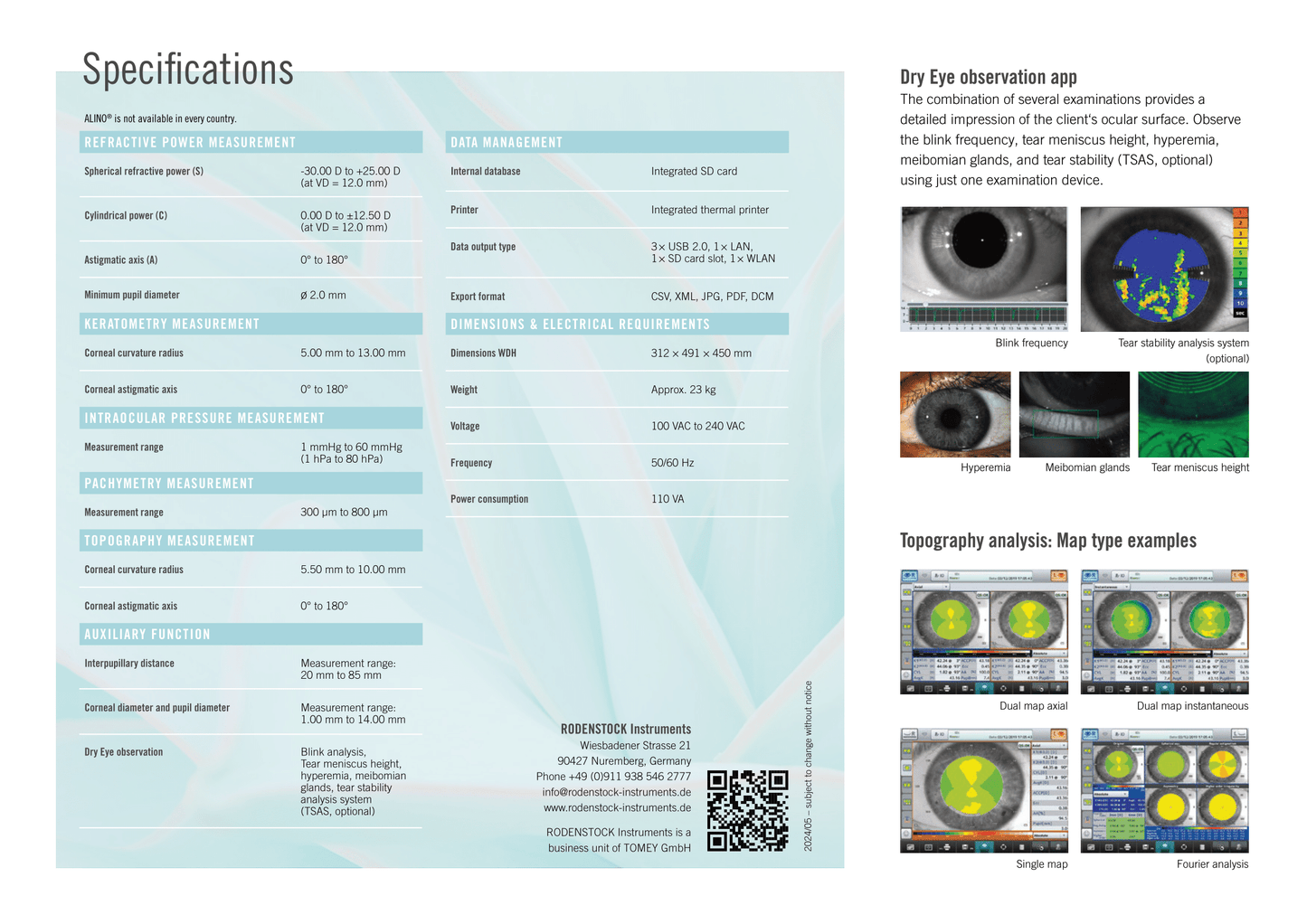

Technical Specifications

Refraction Range

Sphere: −30.00 D to +25.00 D at 12 mm VD

Cylinder: 0.00 D to ±12.50 D

Axis: 0°–180°

Keratometry

Radius: 5.00–13.00 mm

Astigmatic Axis: 0°–180°

Tonometry (IOP)

Measurement Range: 1–60 mmHg (1–80 hPa)

Pachymetry (CCT)

Range: 300–800 µm

Topography Mapping

Radius Range: 5.50–10.00 mm

Axis: 0°–180°

Auxiliary Measures

Interpupillary Distance: 20–85 mm

Pupil/Corneal Diameter: 1–14 mm

Data & Connectivity

Internal SD database, built-in thermal printer, 3× USB 2.0, LAN, SD‑card slot, WLAN

Export Formats: CSV, XML, JPG, PDF

Physical & Electrical Specs

Dimensions: 312 × 491 × 450 mm (W × D × H)

Weight: ~23 kg

Voltage: 100–240 V AC, 50/60 Hz

Power Consumption: ~110 VA

Special Features & Benefits

Quick Ref Mode enhances workflow by providing accurate objective starting values even for patients unable to fully cooperate.

Keratometry with KAI & KRI provides early identification of corneal irregularities, supporting contact lens fitting and vision customization.

Soft Air Puff Tonometry delivers gentle IOP measurement accepted by patients more readily, encouraging routine screening.

Optical Pachymetry records accurate central corneal thickness and corrects IOP values using built-in formulas

Corneal Topography Mapping supports detailed screening, contact lens selection, and client education. Offers maps like axial, instantaneous and Fourier.

Dry Eye Observation Suite includes blink frequency, tear meniscus height, hyperemia assessment, Meibomian gland imaging, and optional Tear Stability Analysis System (TSAS).

Optional FundusScope Integration allows fast, non-mydriatic fundus images using up to nine fixation points and mosaic capture up to 80° field.

10.1″ Touch Panel Interface supports intuitive, fast operation with integrated image preview and high-res sensor controls

Built-In Thermal Printer enables fast patient result printouts directly at device.
